TENWAYS AGO AIR

Our Four Promise To You

order today ,ride in 7 days

Order today,
ride in 7 days

200+ offline service centers across Europe

Responsive support that guarantees results

Spare parts supplied beyond the warranty period

Version

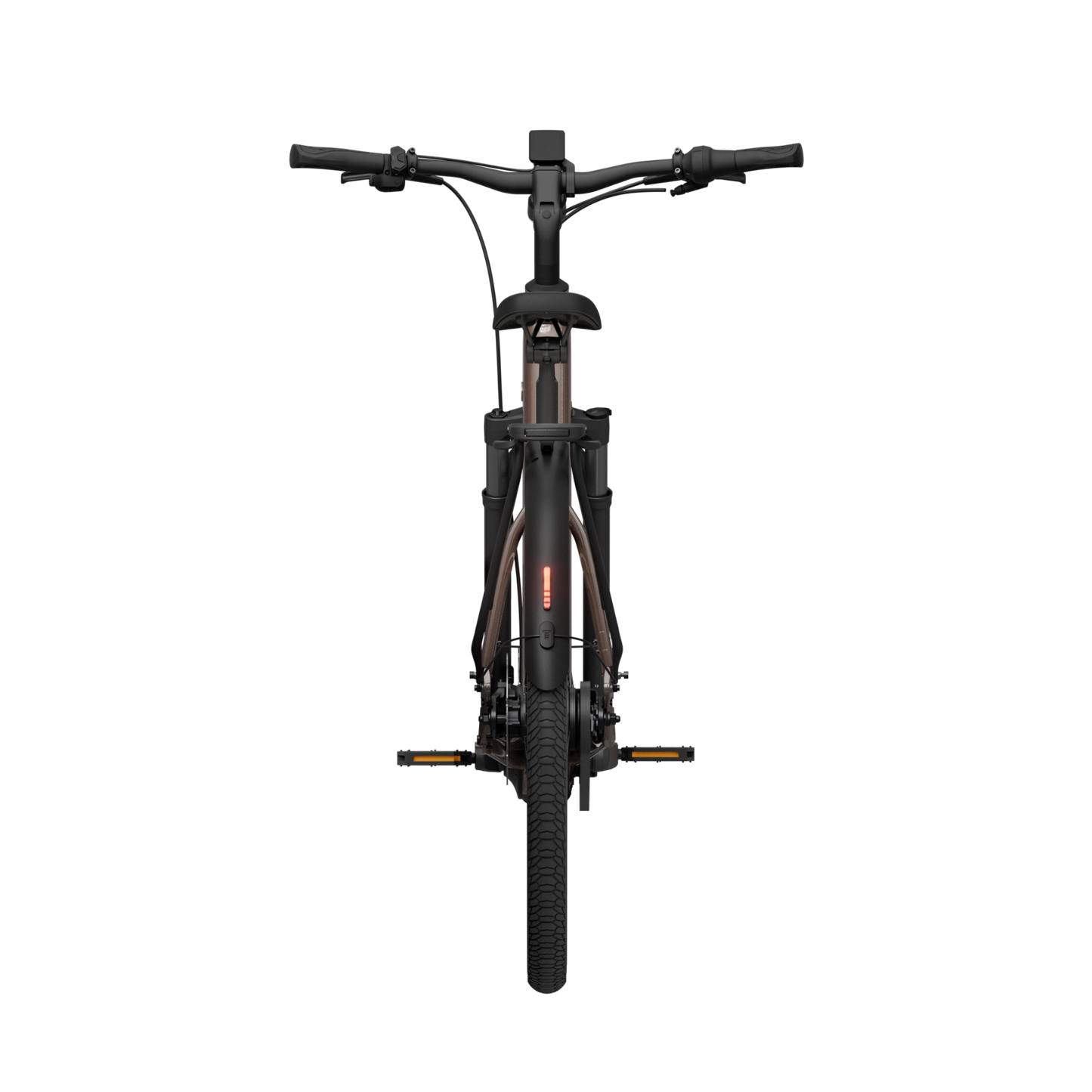

BELTDrive

£2,299

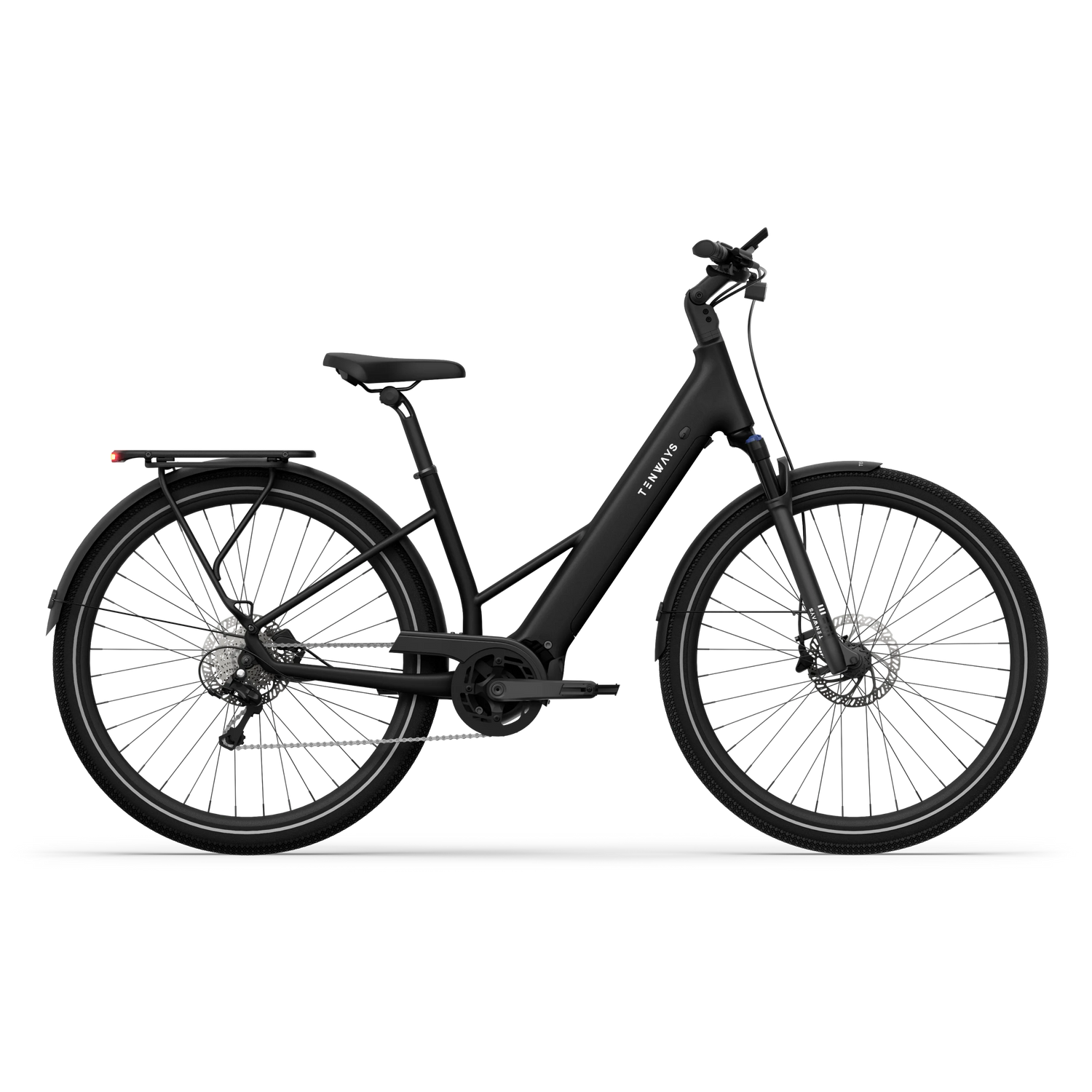

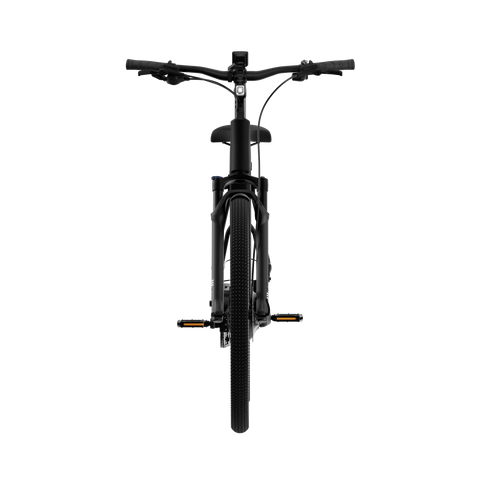

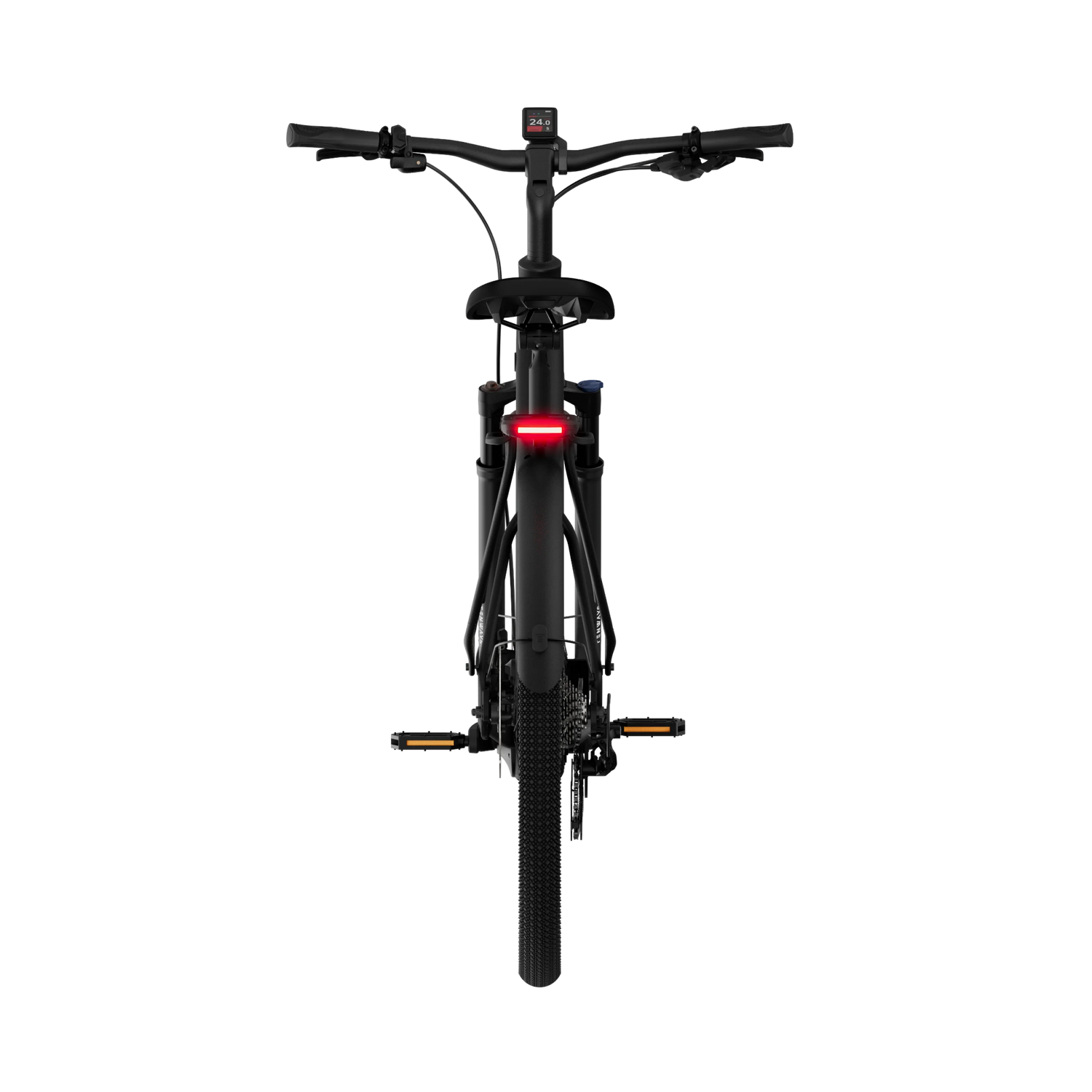

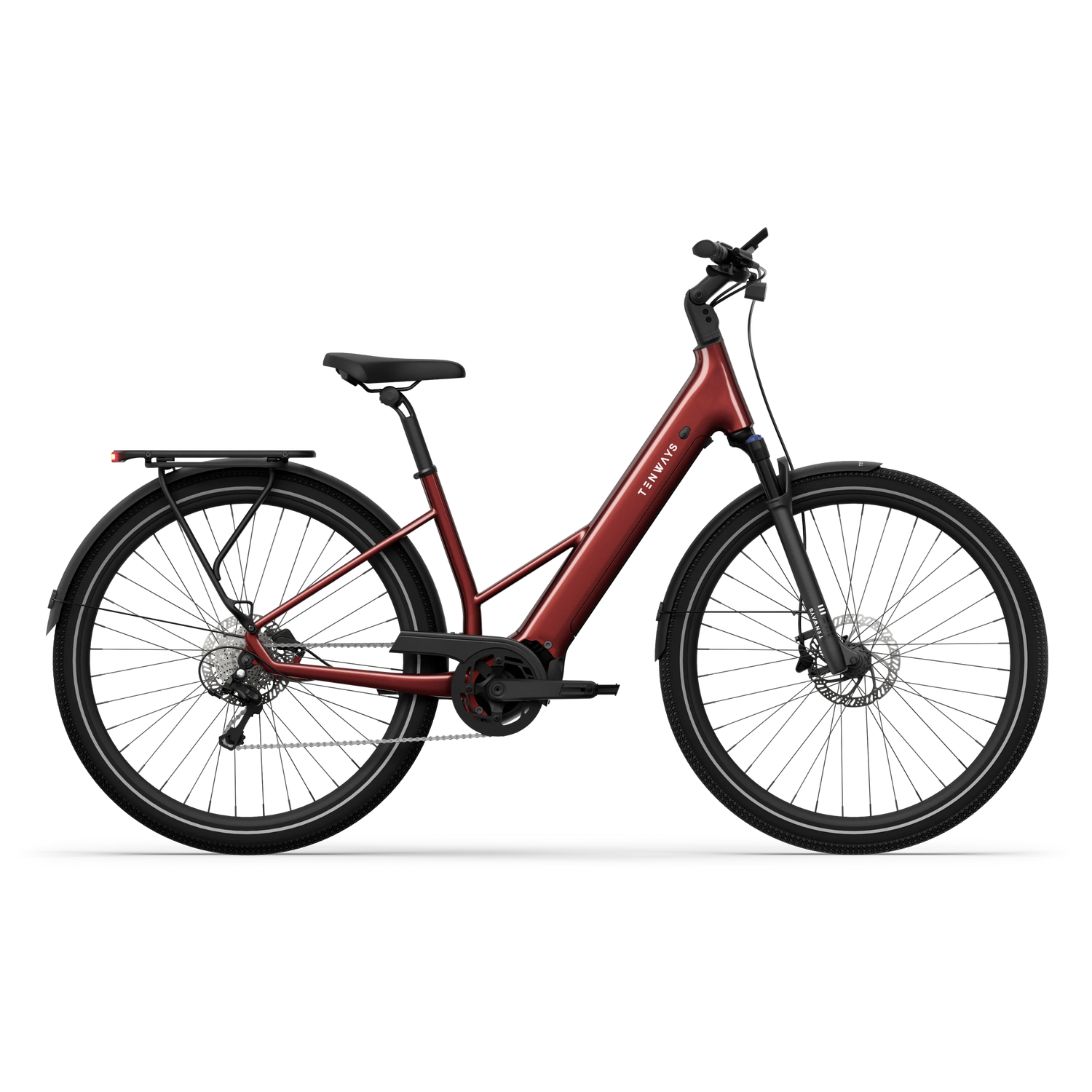

CHAINDrive

£1,999

Color

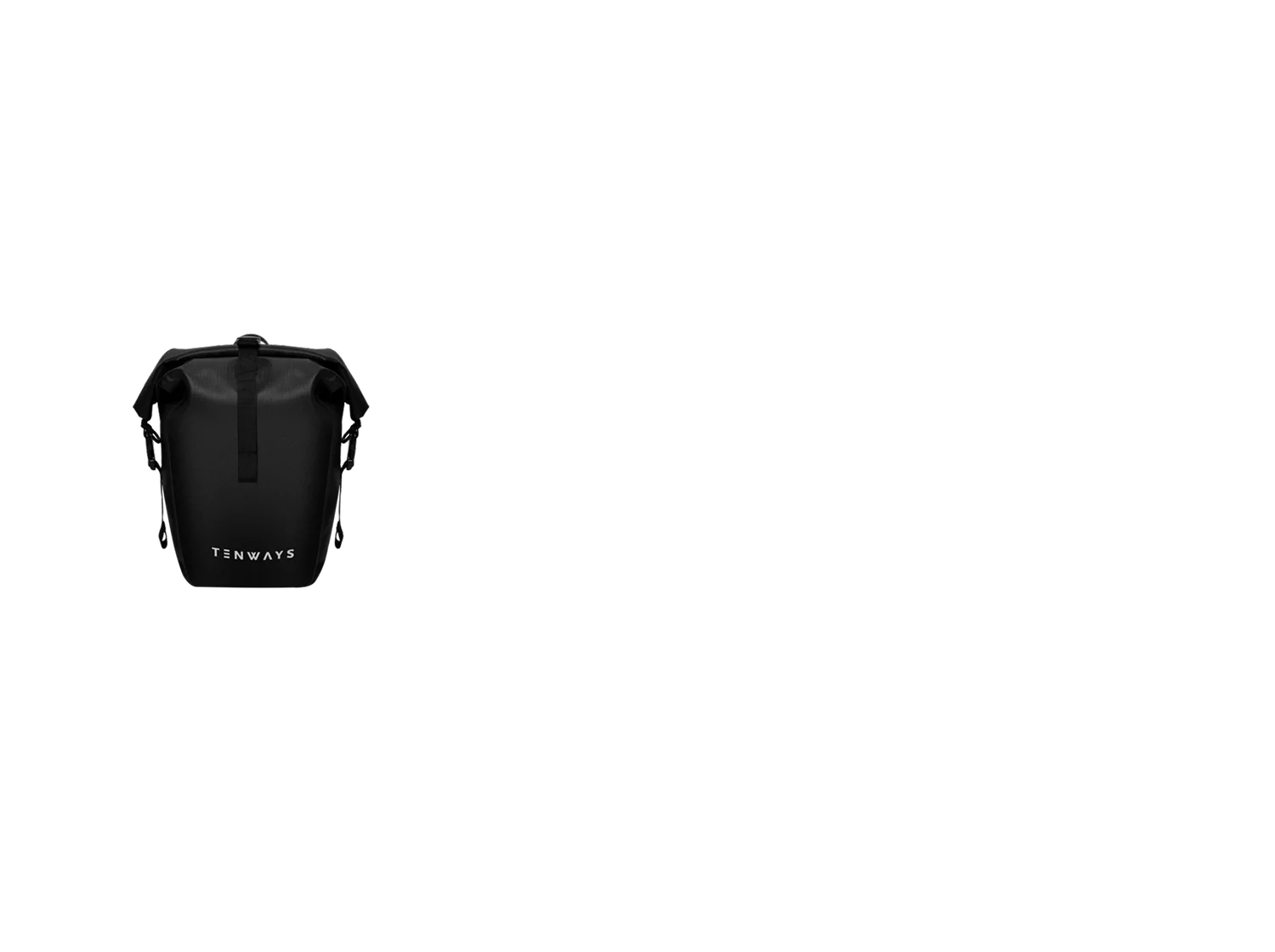

Accessories

Color

Accessories

PERFORMANCE

560 Wh Battery

80 Nm max. torque

Gates CDX Carbon Belt Drive

Shimano 9-speed Drive Train

Shimano Nexus 5-speed

Up to 100 km range

Drivetrain

Gates CDX Carbon Belt

Chain

Gates CDX

Carbon Belt

Chain

Derailleurs

Shimano

NEXUS 5-Speed

Shimano

CUES 9-Speed

Shimano

NEXUS 5-SPeed

Shimano

CUES 9-Speed

Front Suspension

Air suspension fork

Hydraulic suspension fork

Air

suspension fork

Hydraulic

suspension fork

Urban Commuting

Climbing Slopes

Field Trails

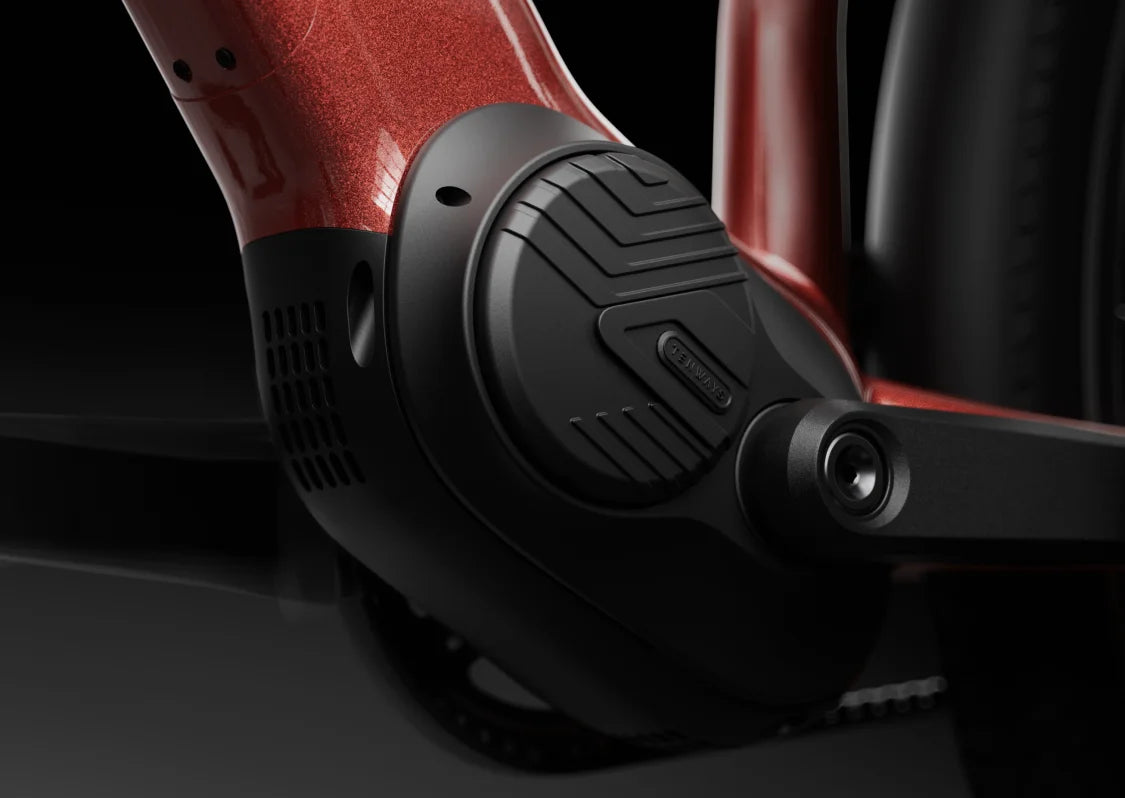

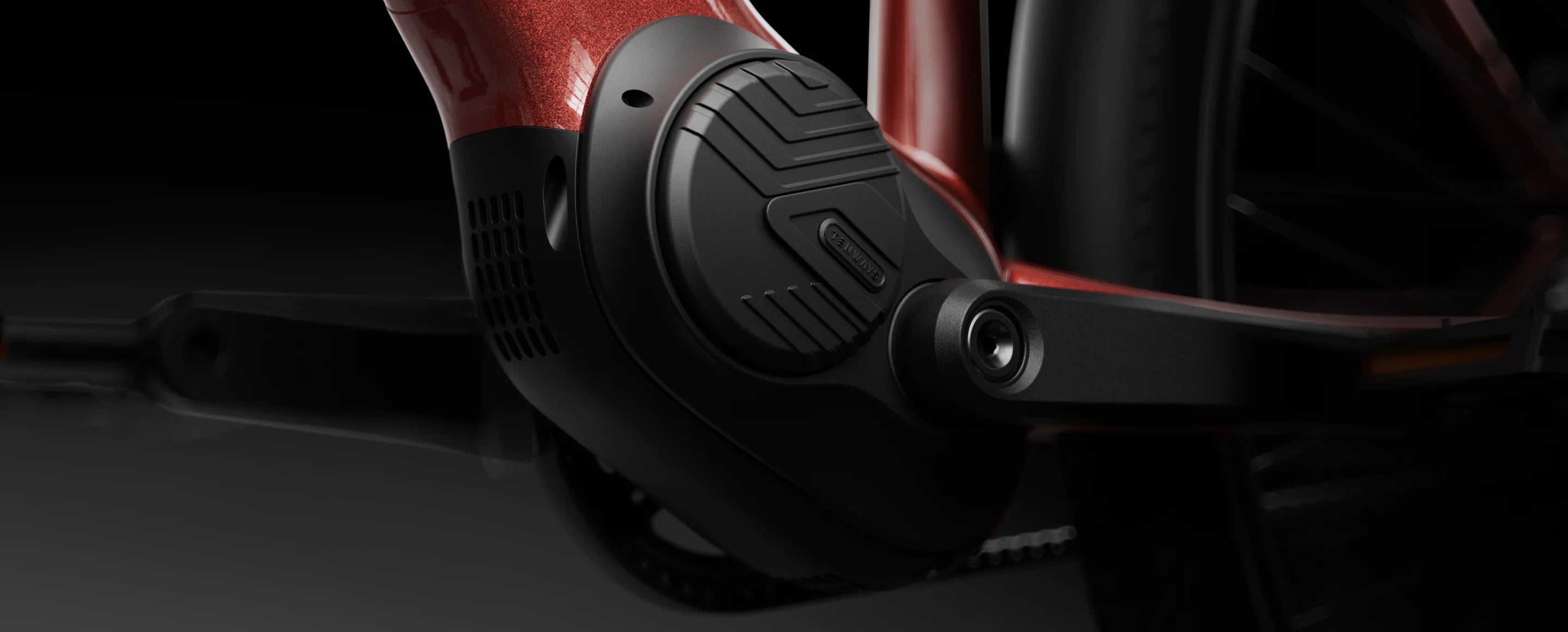

Powerful Mid-Drive Motor for Steep Climbs

Powerful Mid-Drive
Motor for Steep Climbs

80 Nm max.

Torque

The robust mid-drive motor provides the power needed for steep slopes or carrying heavy loads.

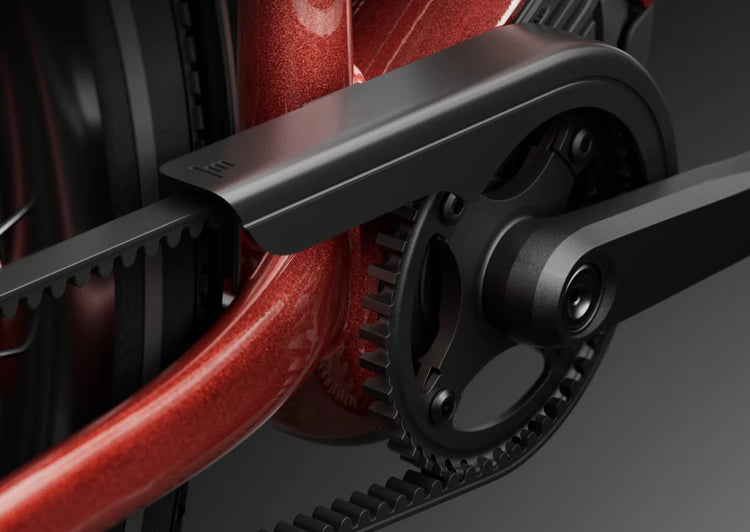

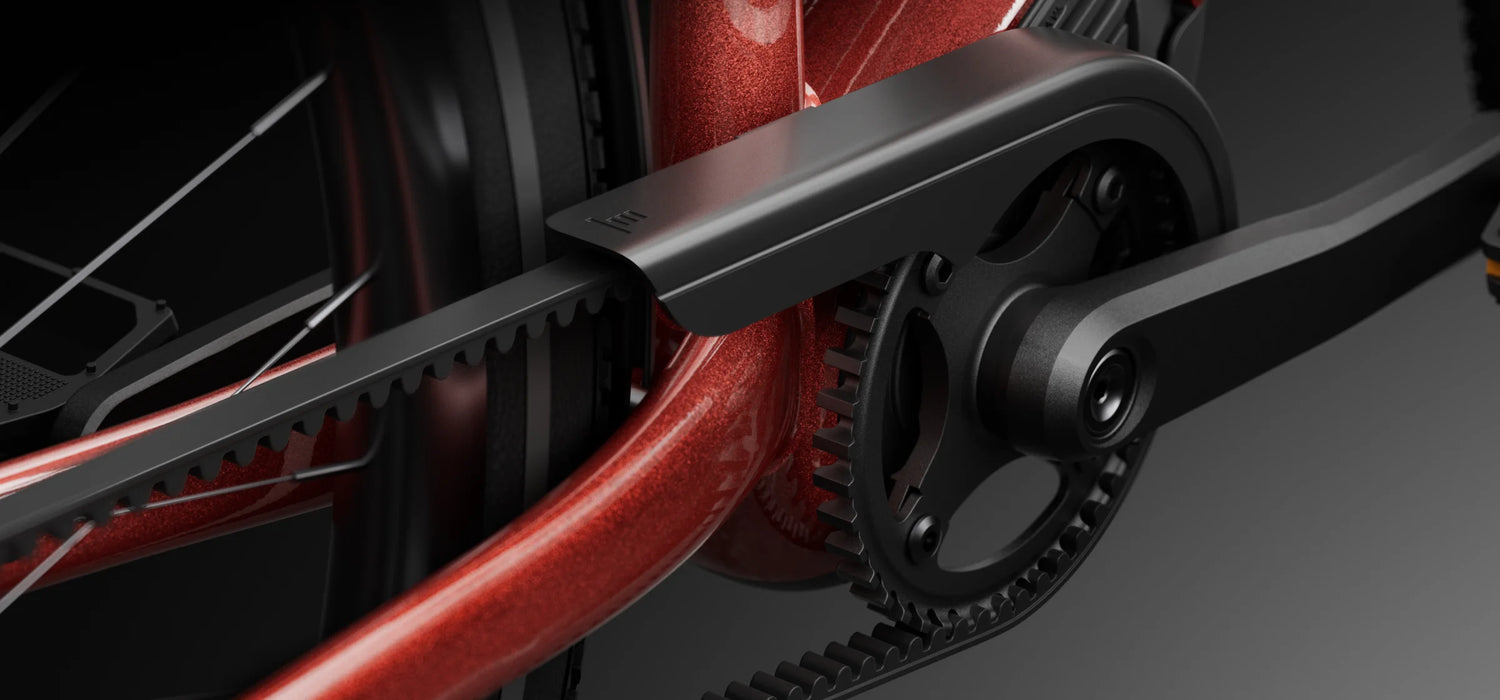

Durable Gates CDX Carbon
Belt Drive

Durable Gates CDX
Carbon Belt Drive

Absolute dependability and lasting performance, with minimal
fuss — no grease, no hassle, just pure cycling pleasure.

*Only available for AGO AIR （Belt Drive）

0 Maintenance

Required

Durable

Quality

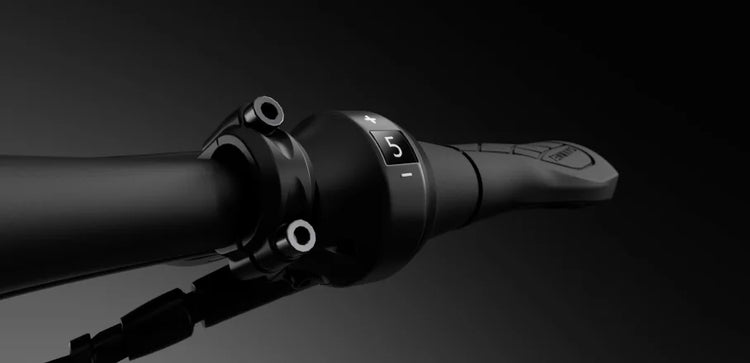

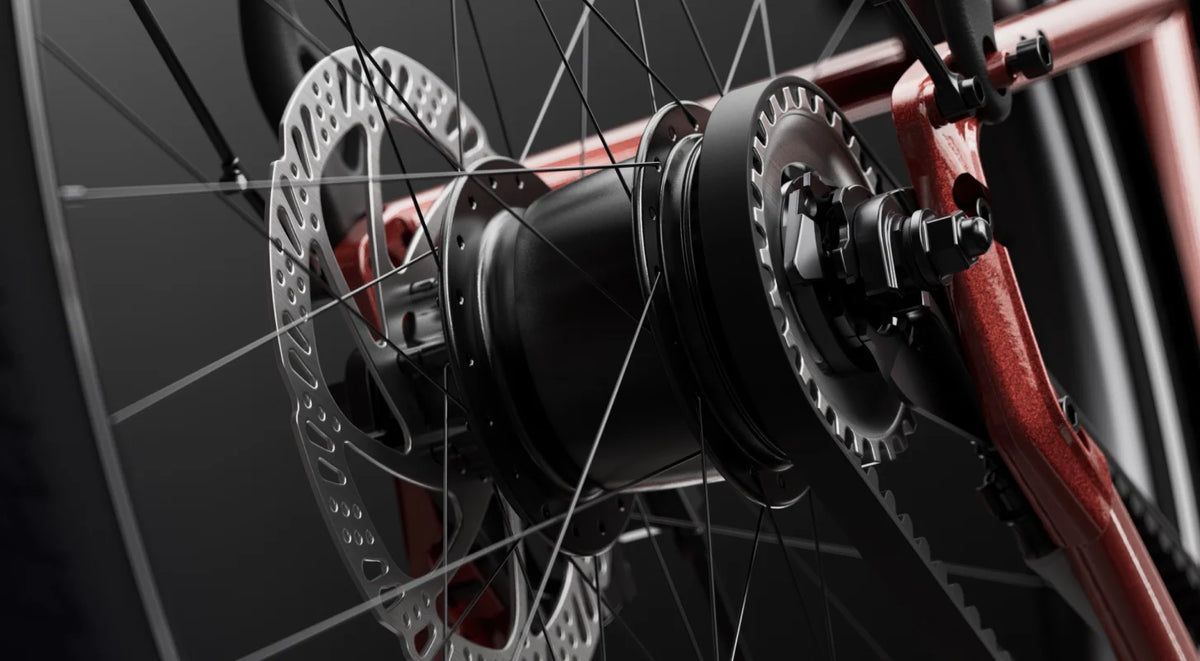

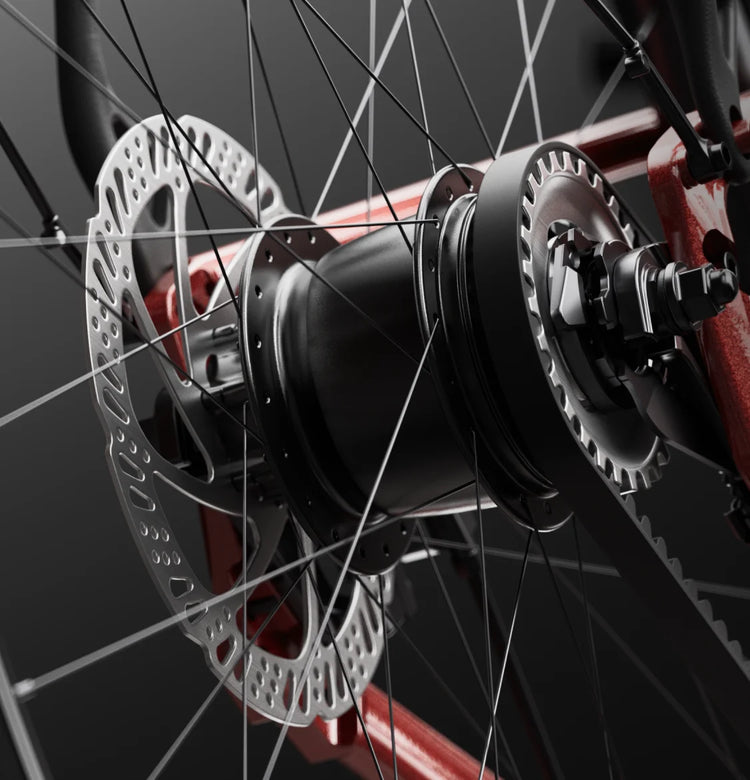

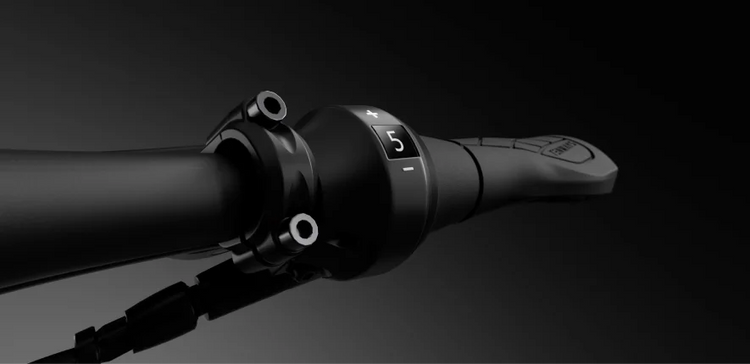

Shimano Nexus 5 Internal
Gear Hub

Shimano Nexus 5 Internal Gear Hub

Smooth, precise shifting adapts to your cadence, delivering reliable performance across varied terrain.

*Only available for AGO AIR （Belt Drive）

Maintenance-Free

100%-263%

Gear ratio range

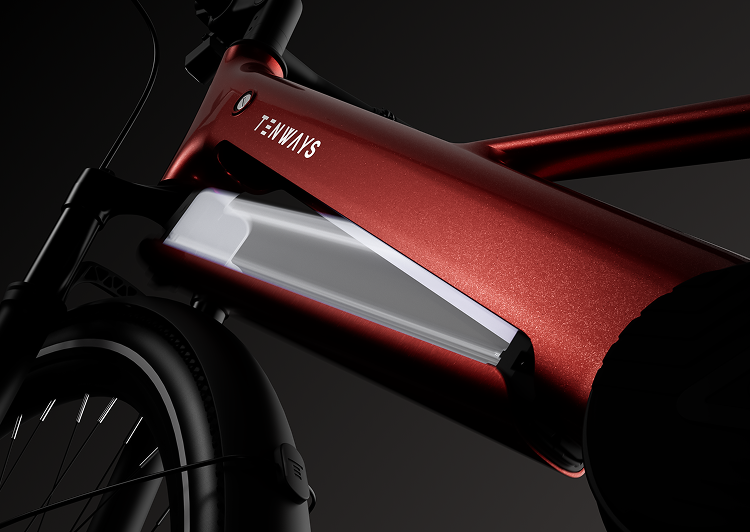

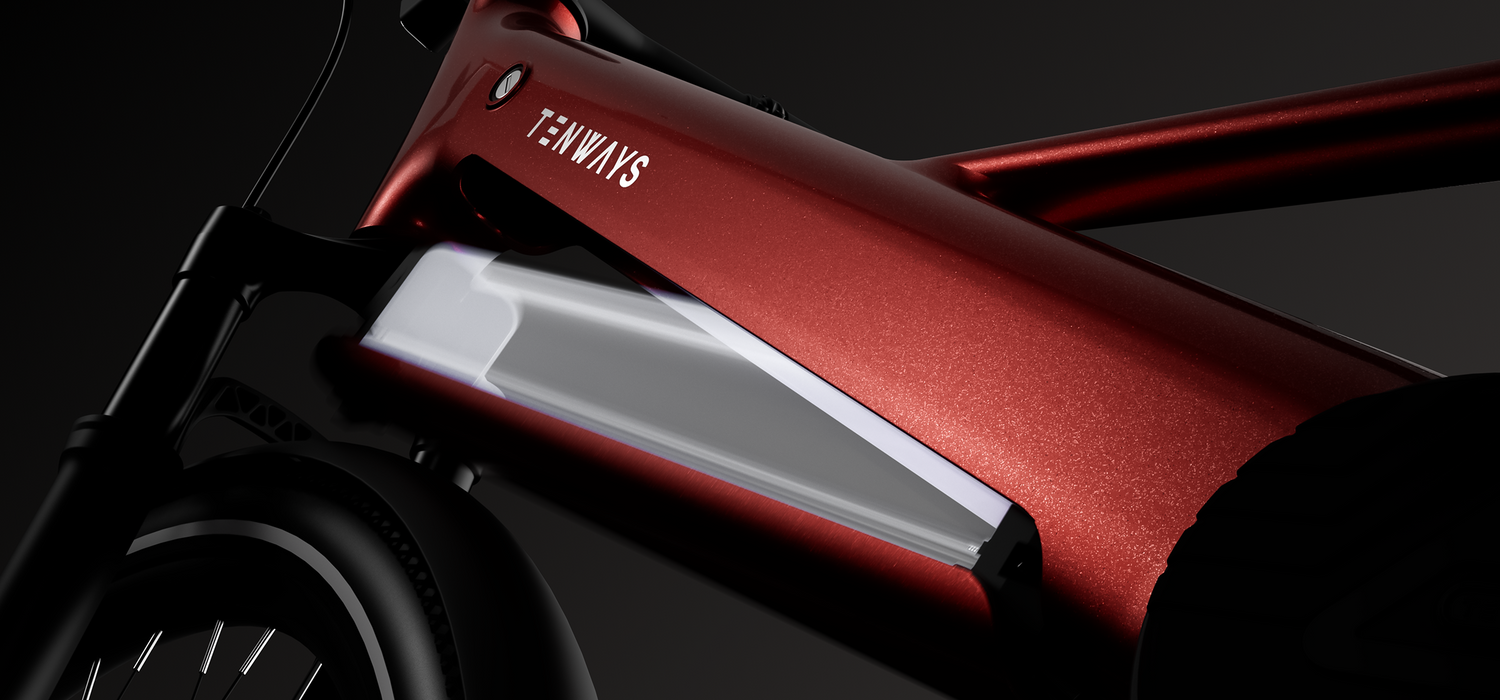

Large Portable Battery,
Up to 100 km Range

560 Wh

Capacity

100 km

Range

Seamlessly integrated into the slim frame, the large portable battery is barely noticeable from a distance.

Handy Navigation Casting Function

Cast real-time navigation directly to your LCD display to help you stay focused on the road ahead.

Supports 7 European Languages

Get all the data you need in the language of your choice; you can choose from 7 European languages (EN, DE, NL, FR, IT, ES, DA).

Dual Unlock Modes Enabled

Secure access to your e-bike with seamless unlocking via Bluetooth or just a password.

Adjustable Stem

Customizable handlebar height and angle for a perfect fit, regardless of riding style and body type.

Selle Royal Saddle

Ergonomic and cushioned for comfort, offering added support, whatever the distance.

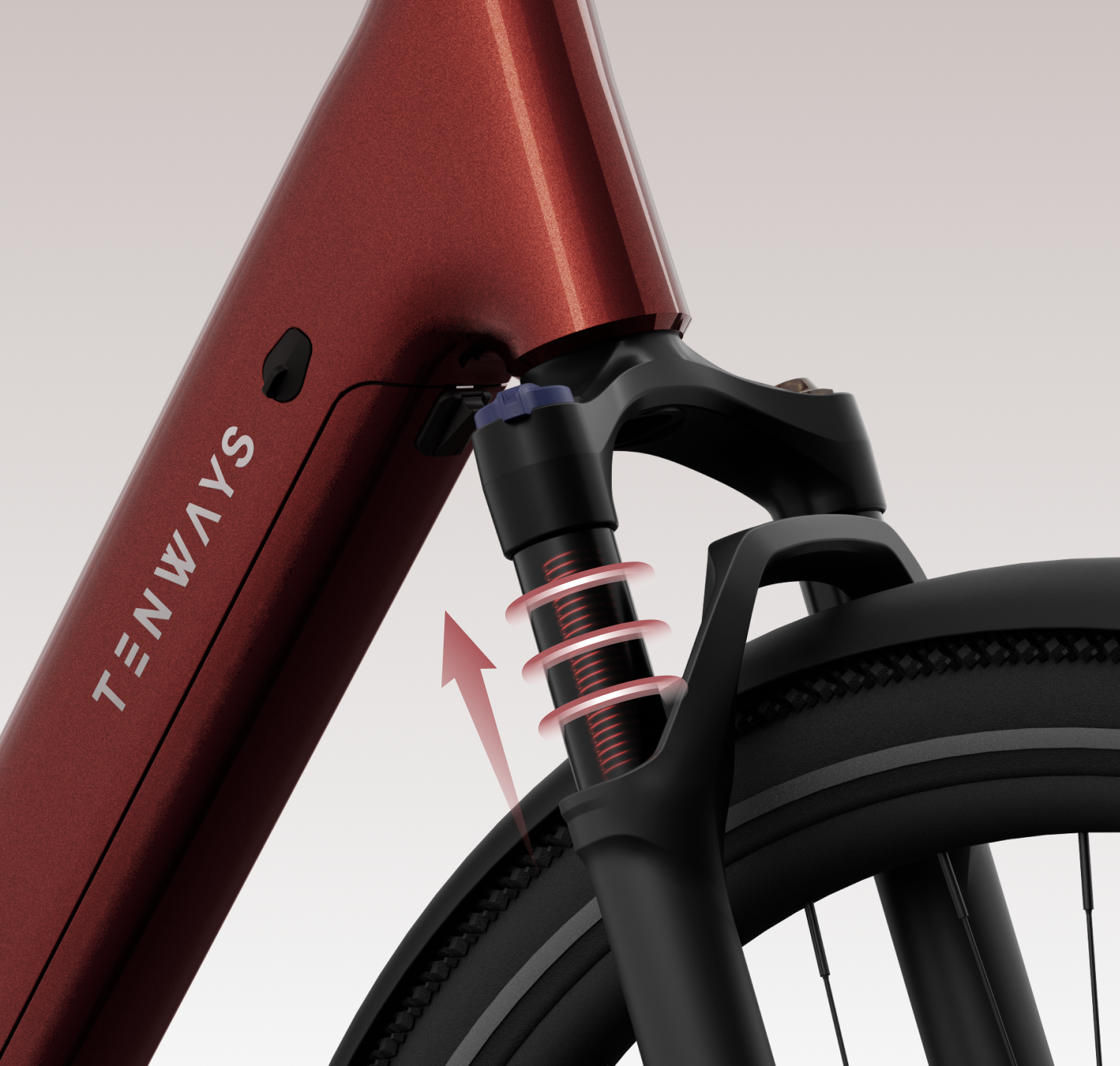

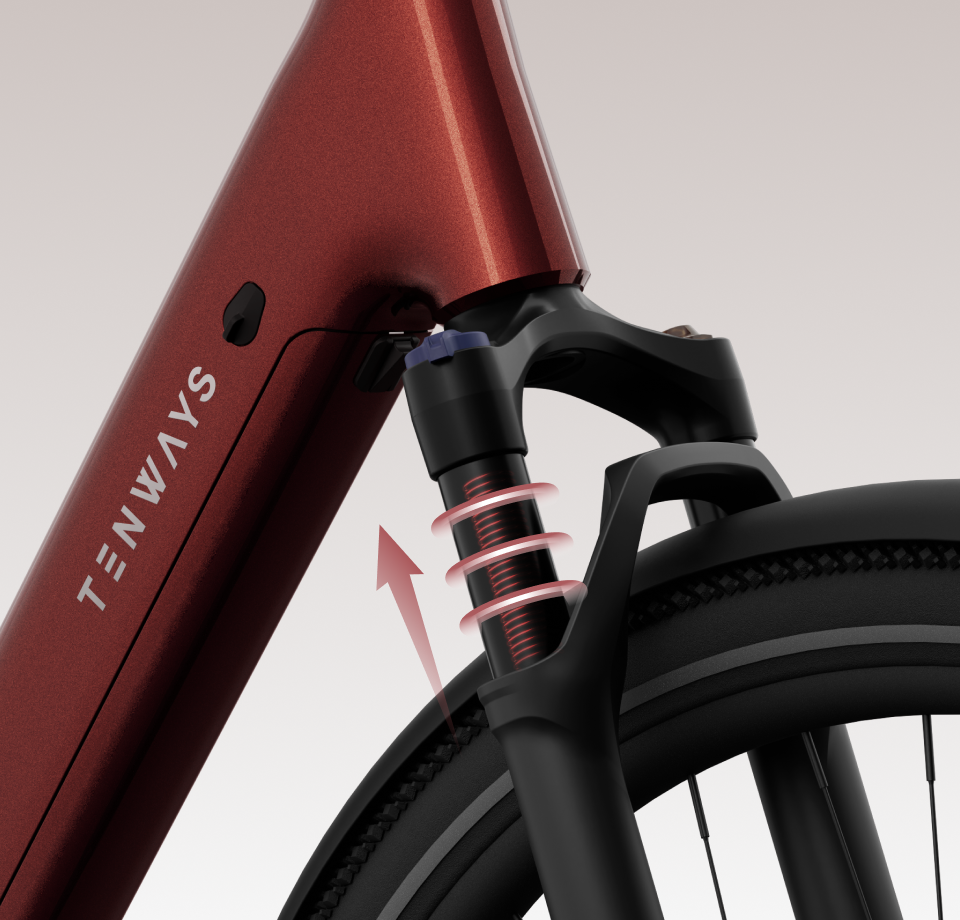

Front Suspension Fork

Absorbs shocks for smooth, stable rides on uneven terrain.

Quality down to the last Detail

1

60 Lux Front Light

StVZO compliant for safe and confident road visibility.

2

Rear Carrier

Equipped with MIK system for increased versatility. Can carry loads of up to 25kg.

3

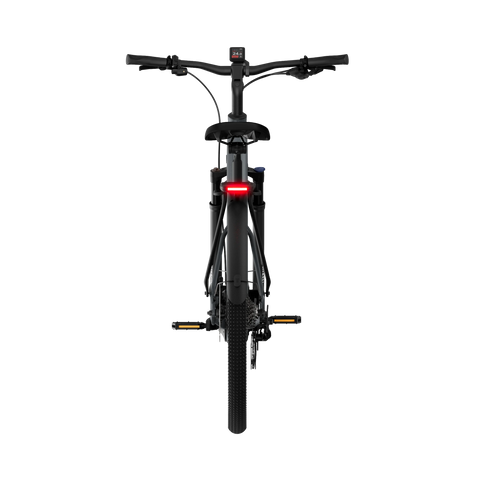

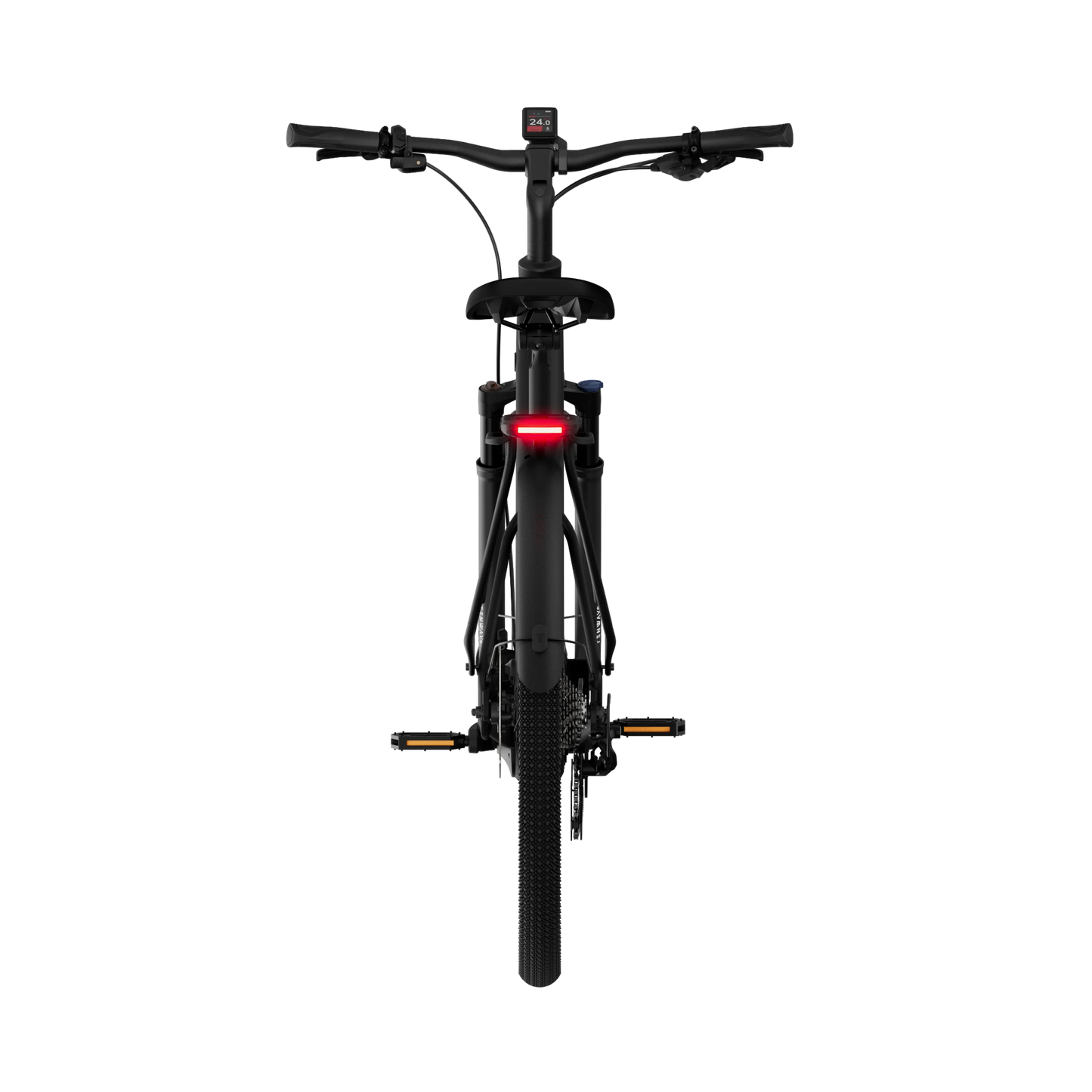

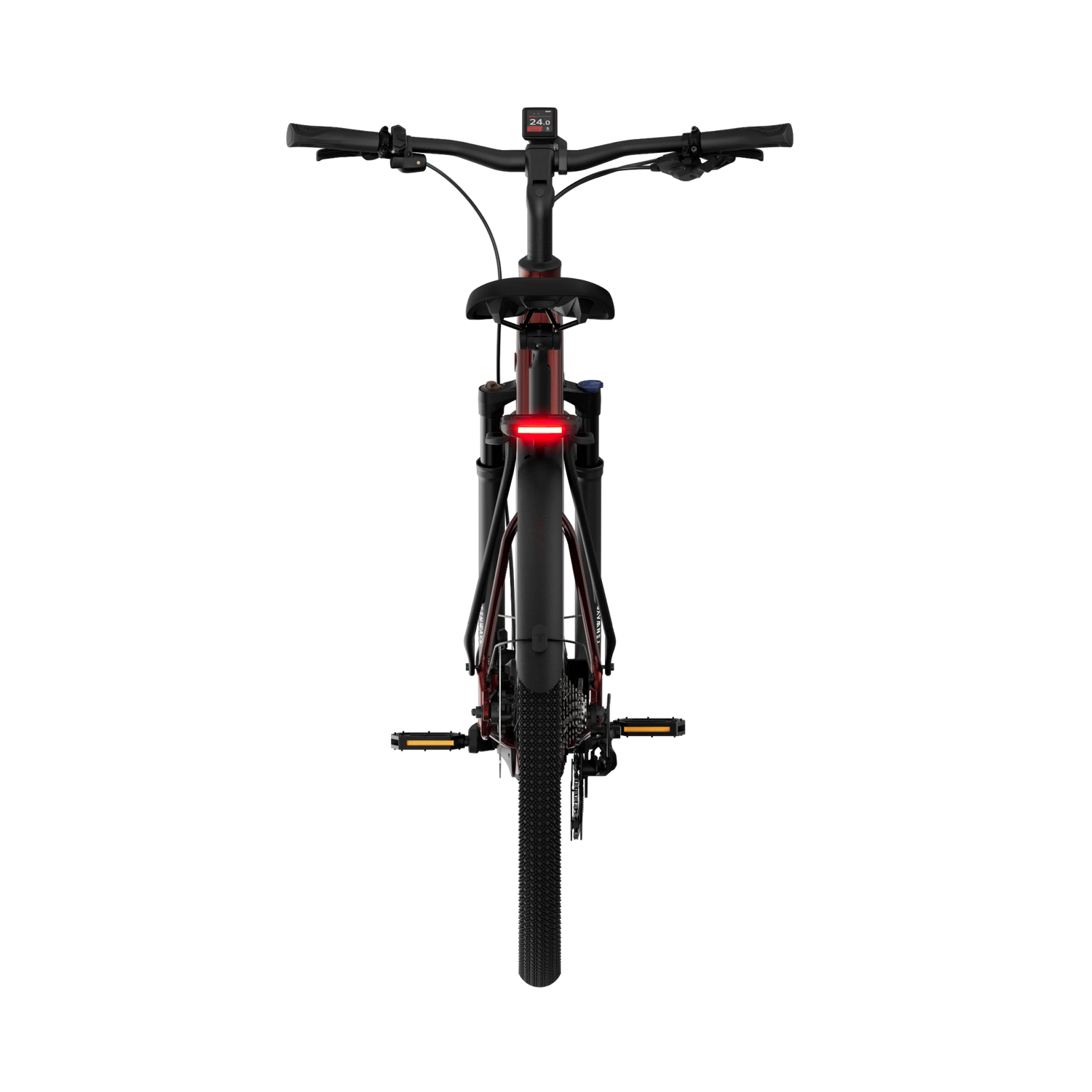

Integrated Rear Light

Enhanced visibility and safety paired with maximized convenience.

4

Hydraulic Disc Brakes

Exceptional stopping power and stability for reliable braking in all weather conditions.

Quality down to the last Detail

60 Lux Front Light

StVZO compliant for safe and confident road visibility.

Rear Carrier

Equipped with MIK system for increased versatility. Can carry loads of up to 25kg.

Integrated Rear Light

Enhanced visibility and safety paired with maximized convenience.

Hydraulic Disc Brakes

Exceptional stopping power and stability for reliable braking in all weather conditions.

Live Data Dashboard

Easy Navigation

Integrated Help Center

Live Data Dashboard

Easy Navigation

Integrated Help Center

For Commutes and Weekend Fun

Urban Exploration Set Free

ELECTRONIC

Motor

TENWAYS Mid-drive Motor (250 W Power, 80 Nm Max. Torque)
Controller

Integrated Controller of the Mid-drive Motor
Sensor

Integrated Torque Sensor for the Mid-drive Motor
Display

DIGIWISE BC240+K 31 TFT color Display
Battery

561.6 Wh (36 V, 15.6 Ah ) Lithium-ion Battery
Lights

StVZO-compliant

PERFORMANCE

Top Speed

25 km/h*
*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
Range

Up to 100 km*
*Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
Climbing Ability

Suitable for Climbing Slopes*
*The actual performance would depend on the rider's physical strength.

COMPONENTS

Frame

Alloy Frame
Crankset

Alloy 170mm Powder paint black
Wheels

ALLOY DB RIM AND ALLOY BEARING HUB
Drivetrain

Belt Drive: SHIMANO NEXUS 5-Speed
Chain Drive: SHIMANO CUES 9-Speed
Brake

SHIMANO Hydraulic Disc Brakes
Tires

KENDA 700*50C 60TPI EPS/Reflective line
Front Fork

Suspension Front Fork
Bottom Bracket

BAFANG
Weight*

Belt Drive:
Net weight: 23.5 kg
(excluding all accessories) 
Full weight: 26 kg
(including all accessories) 

Chain Drive:
Net weight: 24.85 kg
(excluding all accessories) 
Full weight: 27.4 kg
(including all accessories) 

Permissible Max. Weight: 145 kg
*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.

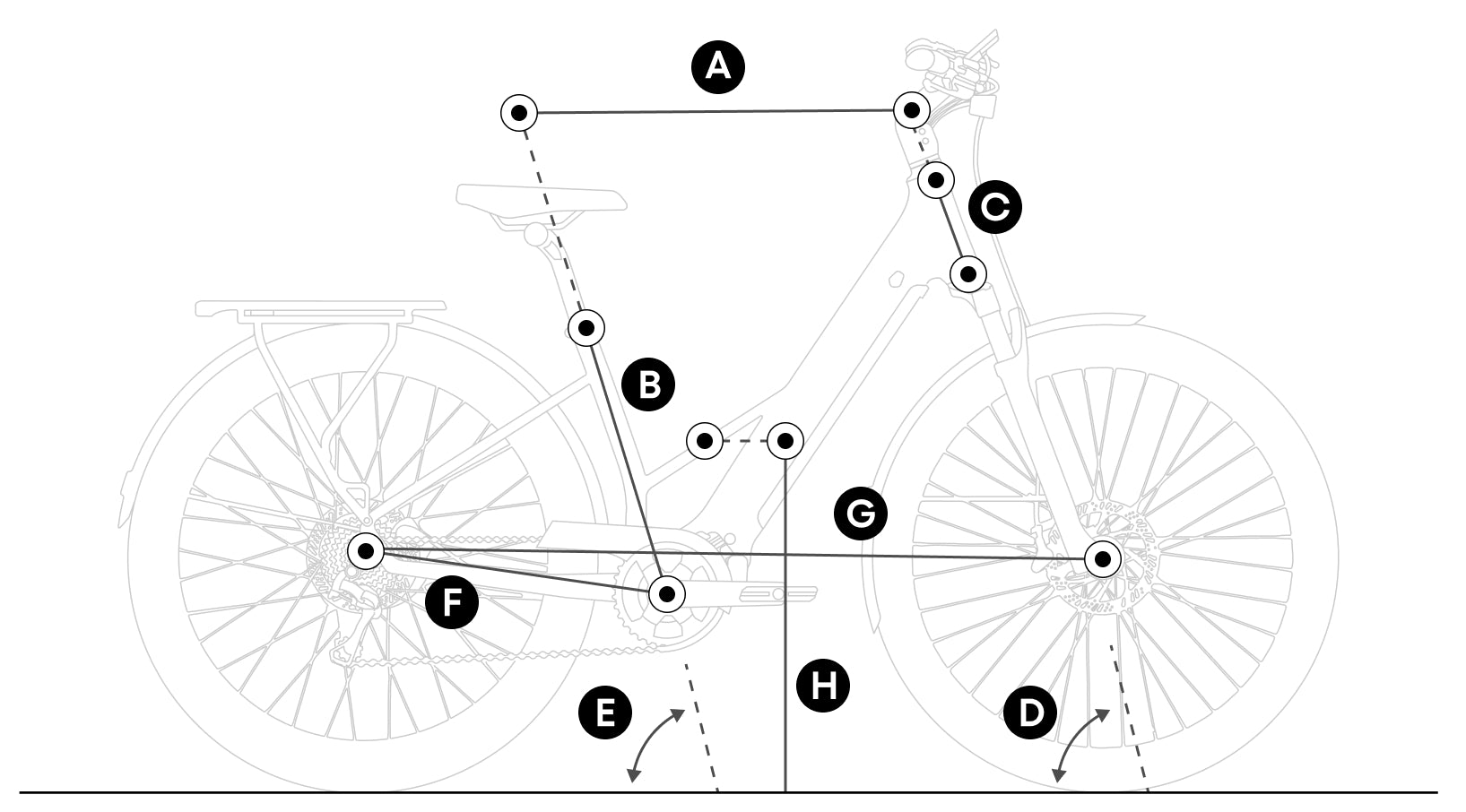

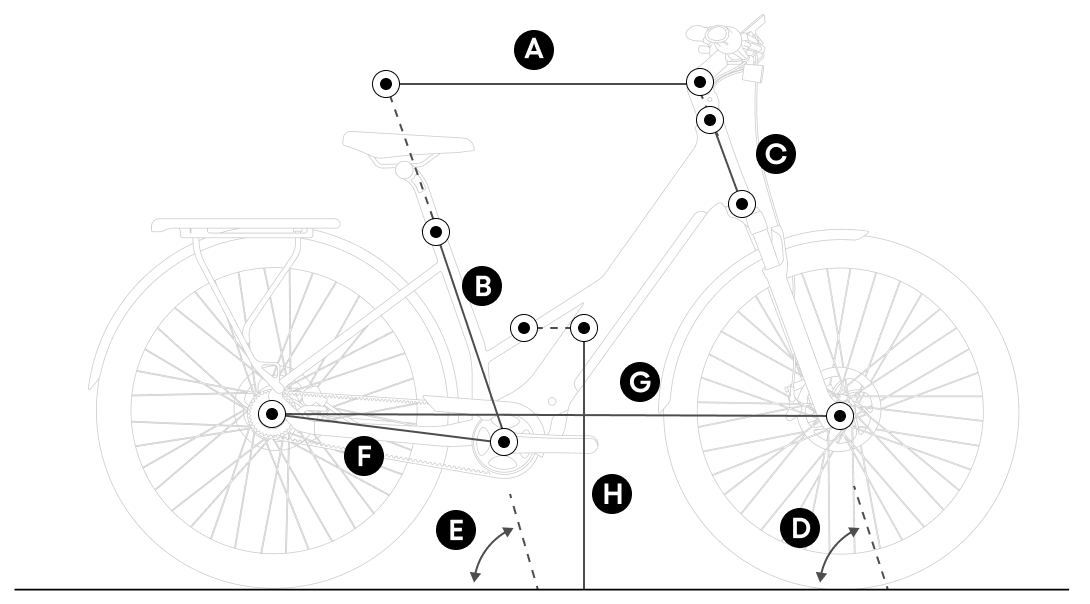

GEOMETRY

SIZE(mm)

ONE SIZE

A Effective top tube

640

B Seat tube length

460

C Head tube

184

D Steering angle

69.6

E Seat tube angle

70.9

F Chainstay

481

G Wheelbase

1168

H Standover

553.9

SIZE(mm)

A Effective top tube

618

B Seat tube length

432

C Head tube

174

D Steering angle

69.6

E Seat tube angle

70.9

F Chainstay

481

G Wheelbase

1145

H Standover

577.4

*Specifications are subject to change without notice. In case of unexpected supply-side impacts, we will offer components of equivalent or better capabilities.
