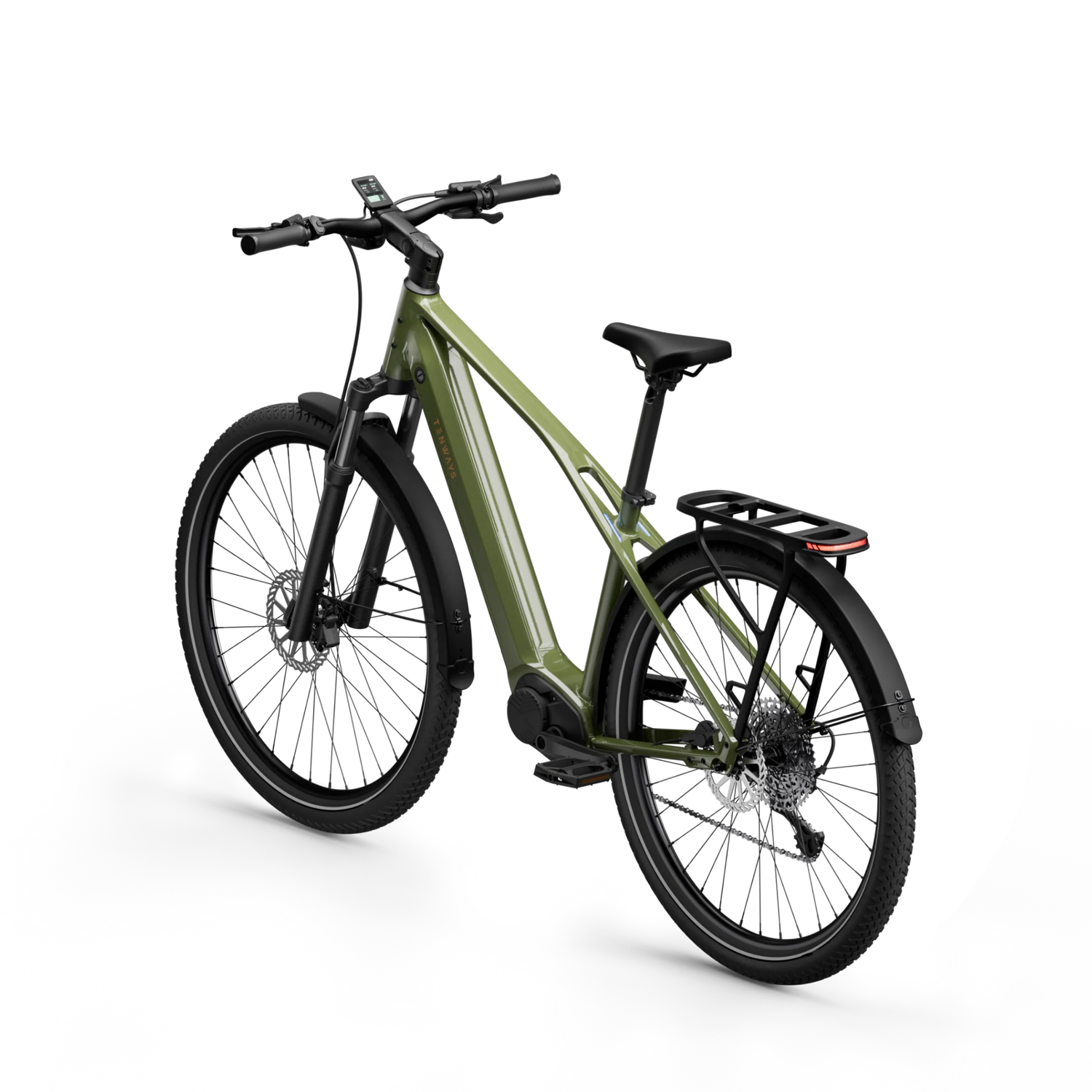

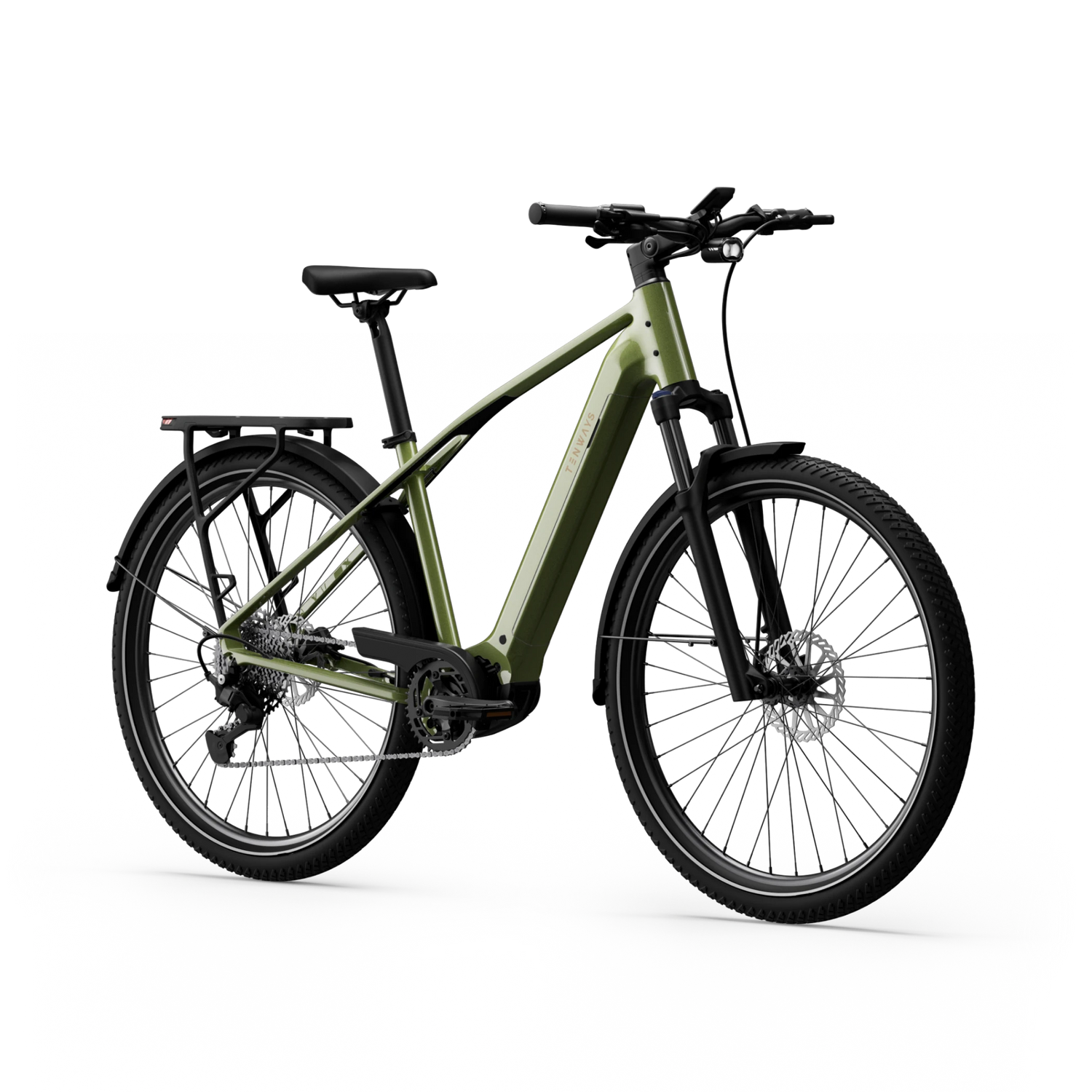

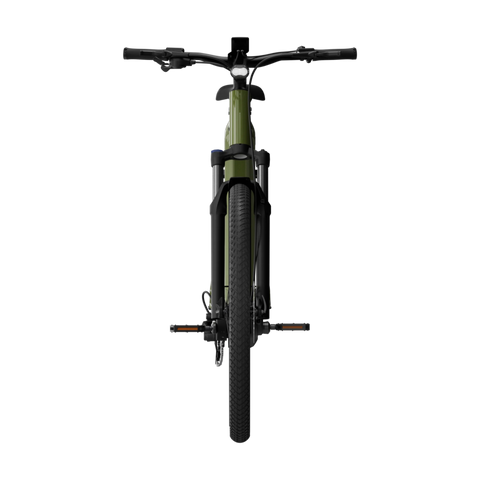

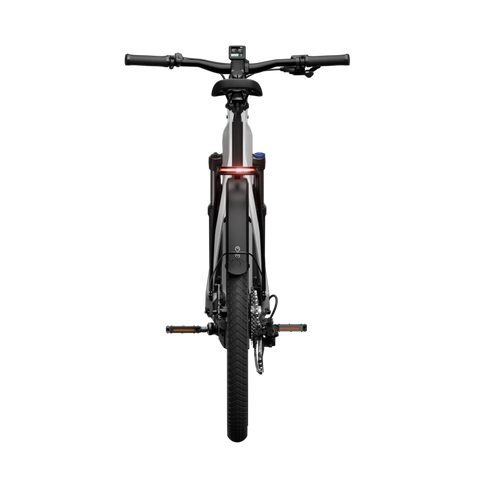

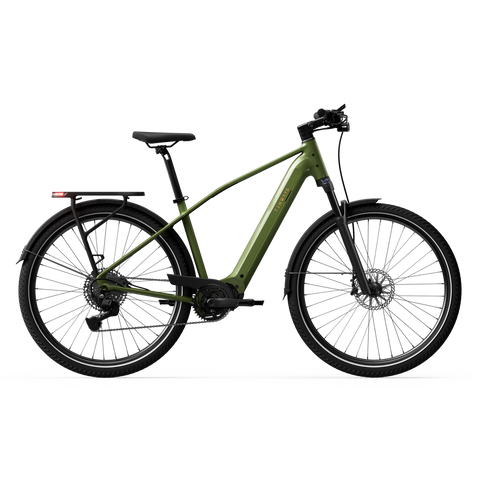

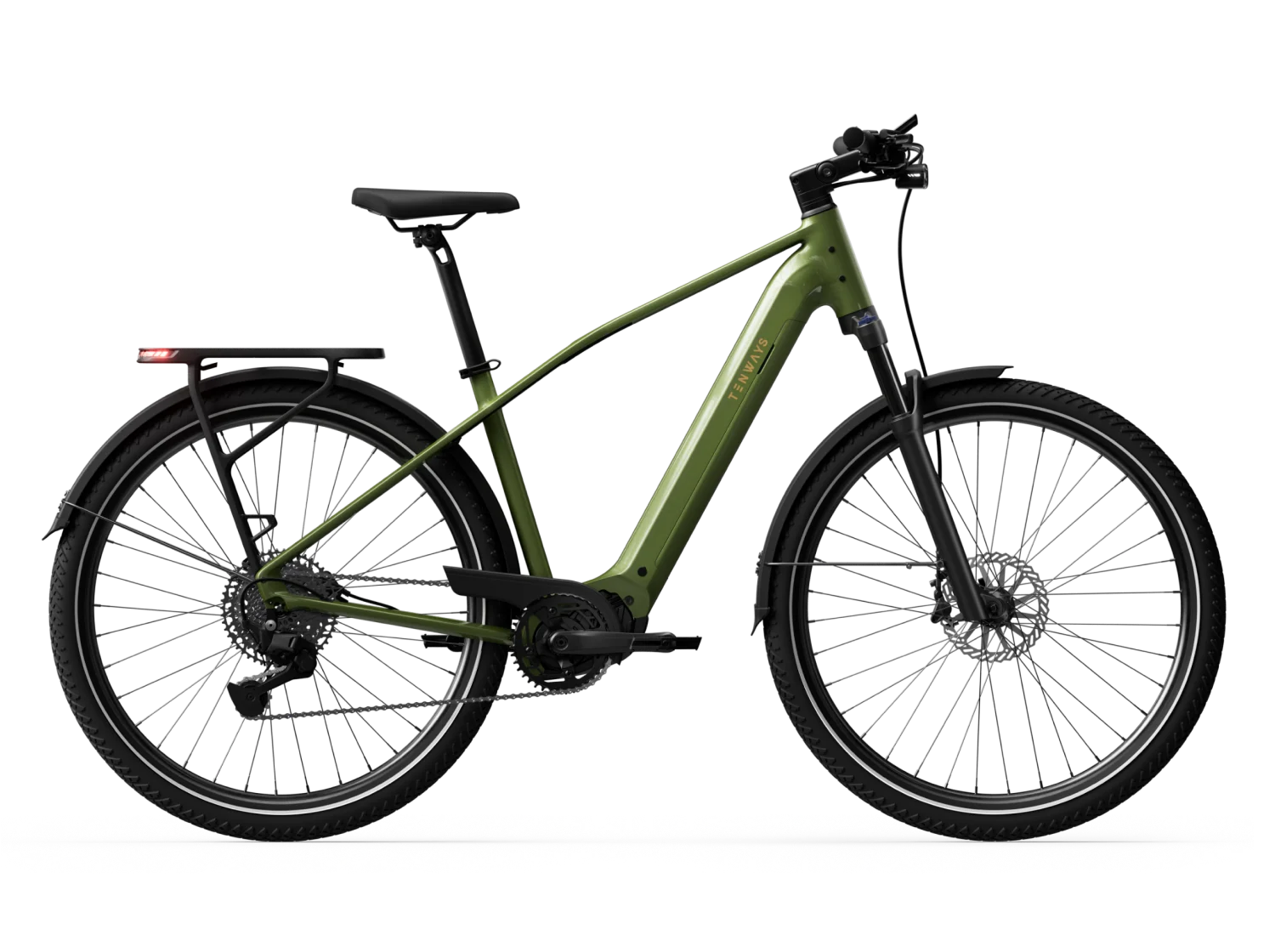

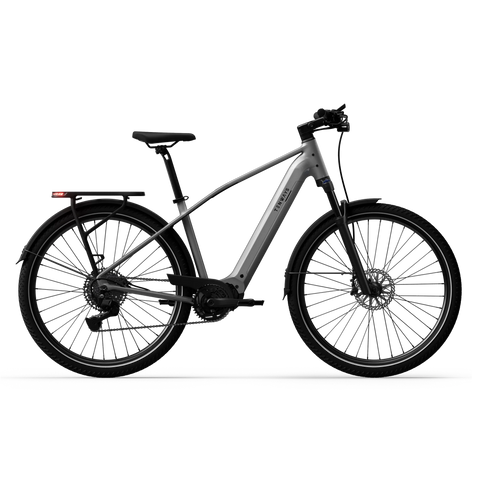

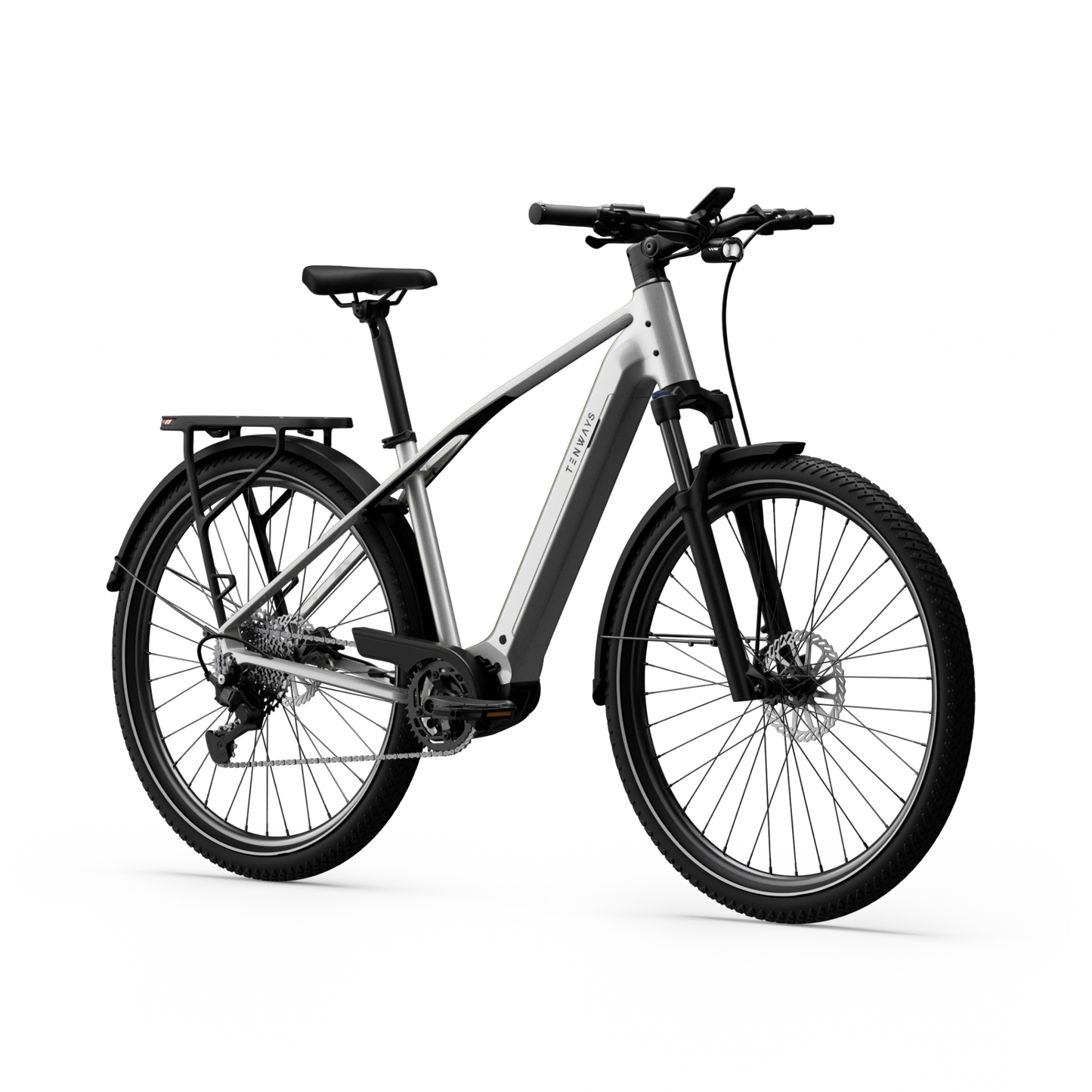

TENWAYS AGO X
- Regular price
- £1,999
- Sale price
- £1,999
- Regular price
-
- Unit price
- per
TENWAYS AGO X
- Regular price
- £1,999
- Sale price
- £1,999
- Regular price
-
- Unit price
- per

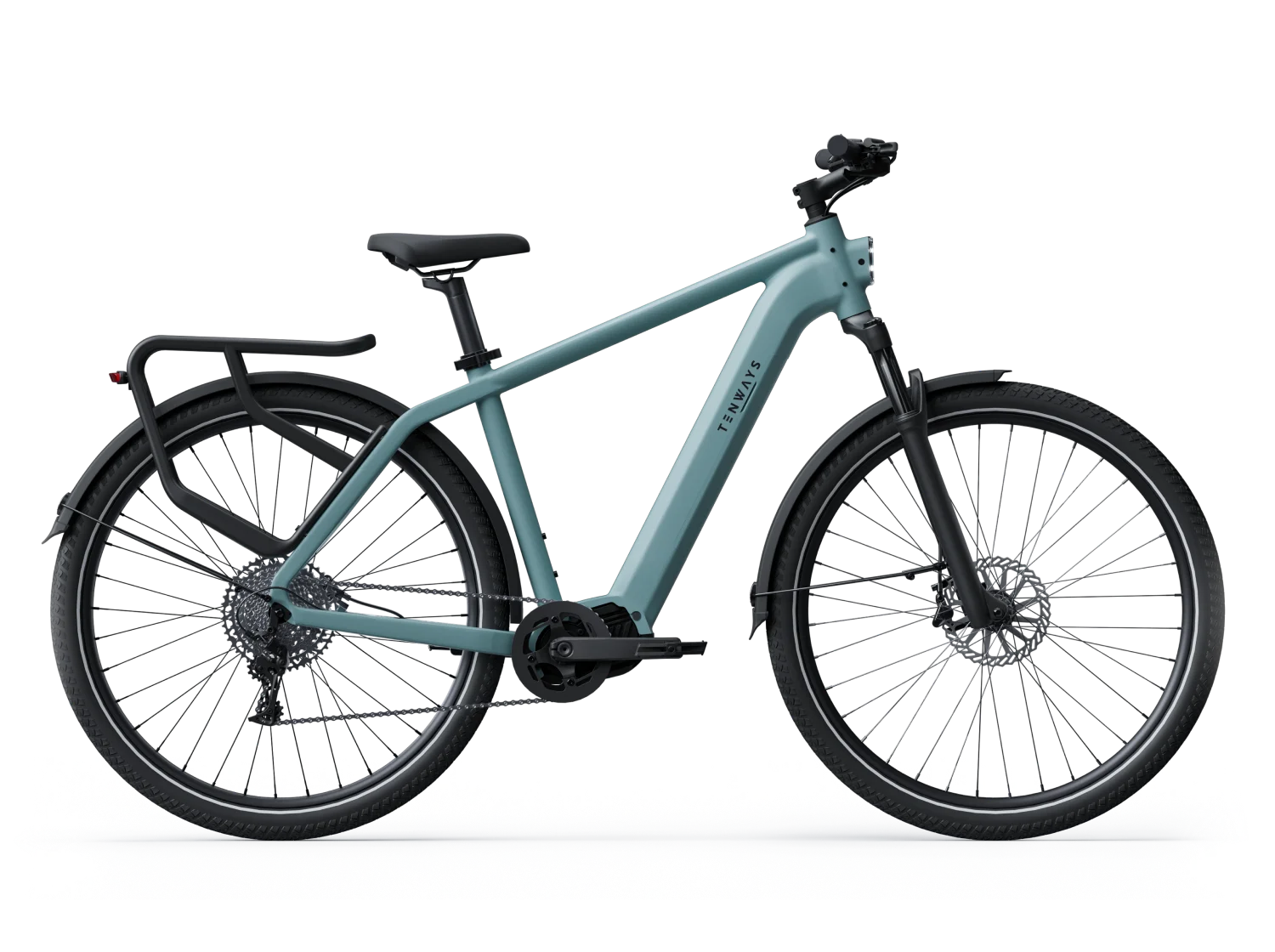

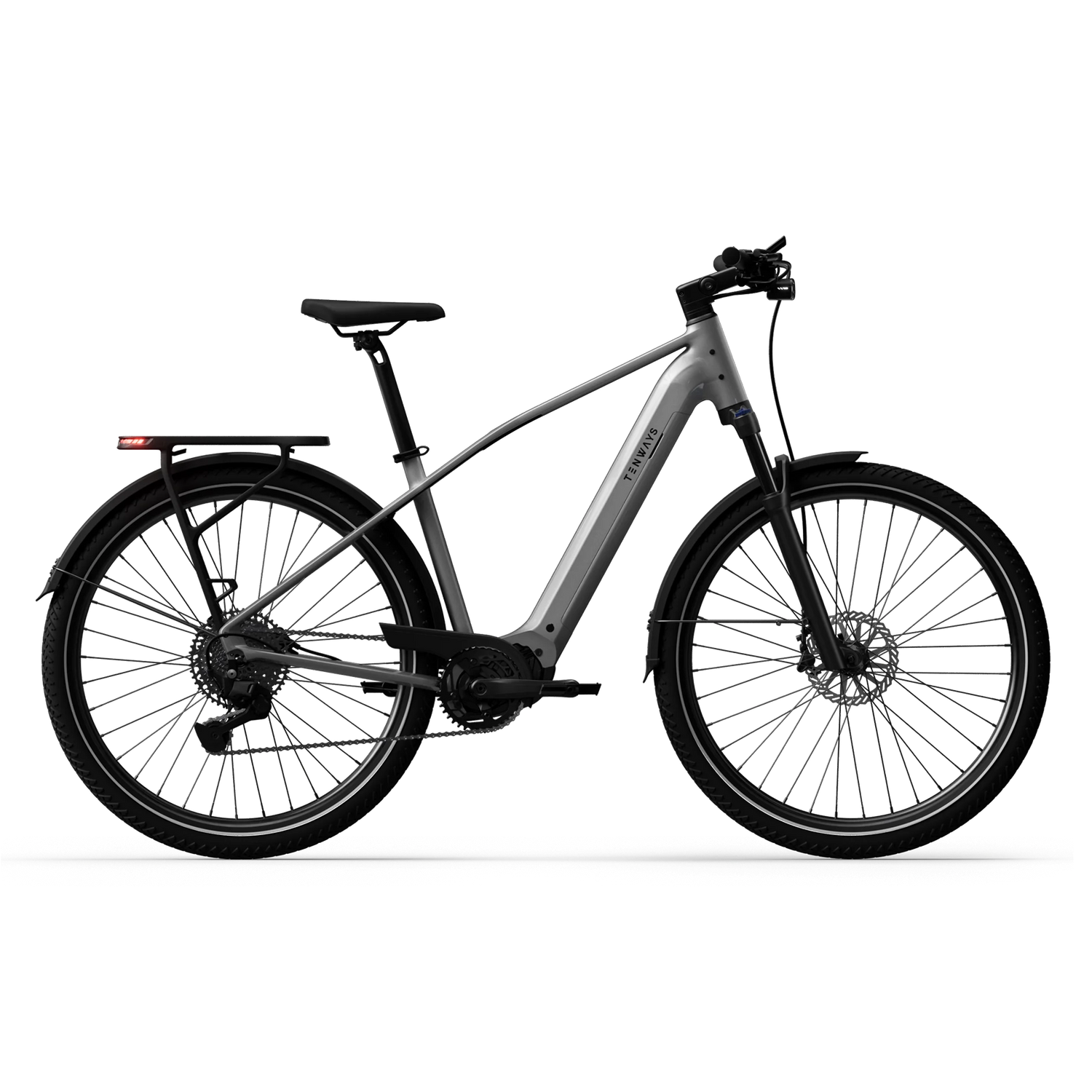

A powerful all-rounder for both urban commuting and off-road adventures.
- 80 Nm Mid-drive Motor
- Up to 100 km Range
- Portable Battery

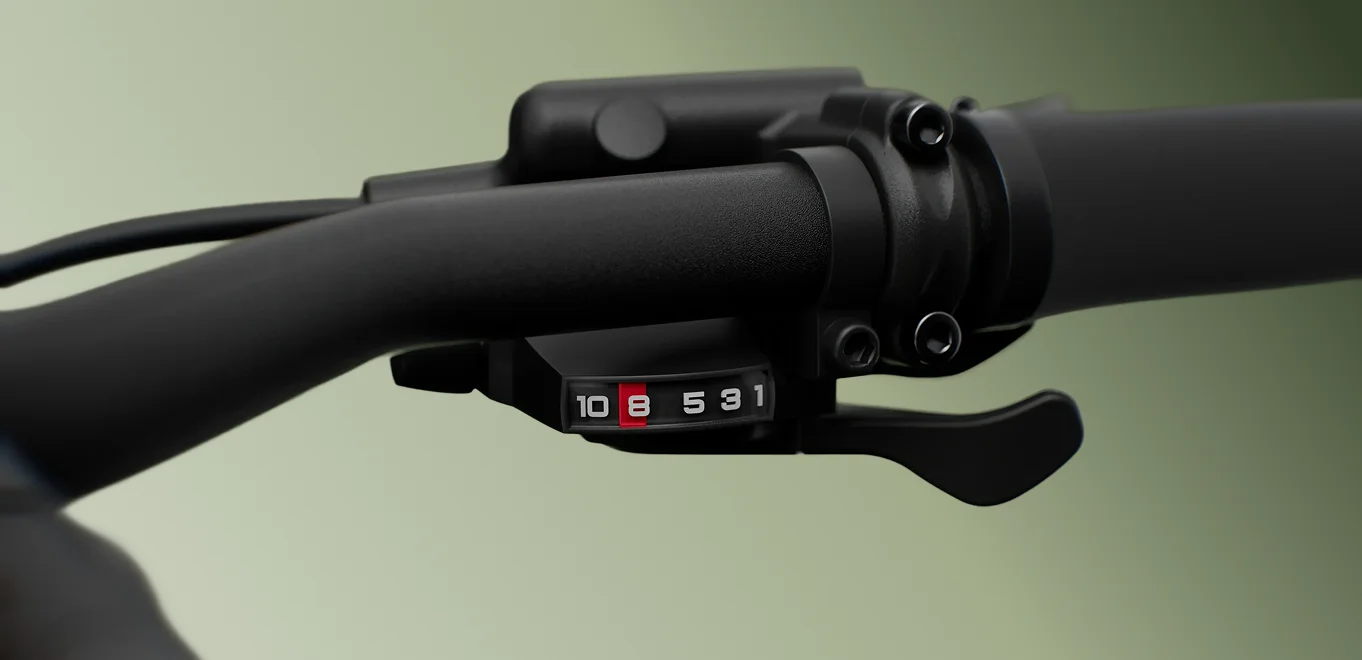

- Shimano 10-speed Drivetrain

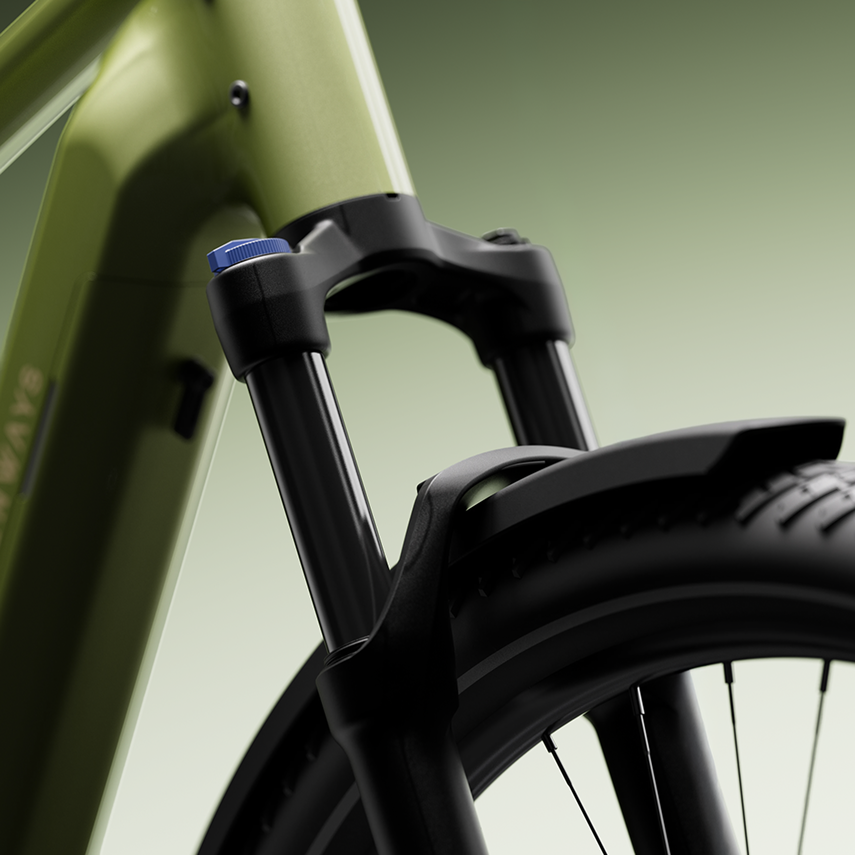

- Hydraulic Front Fork

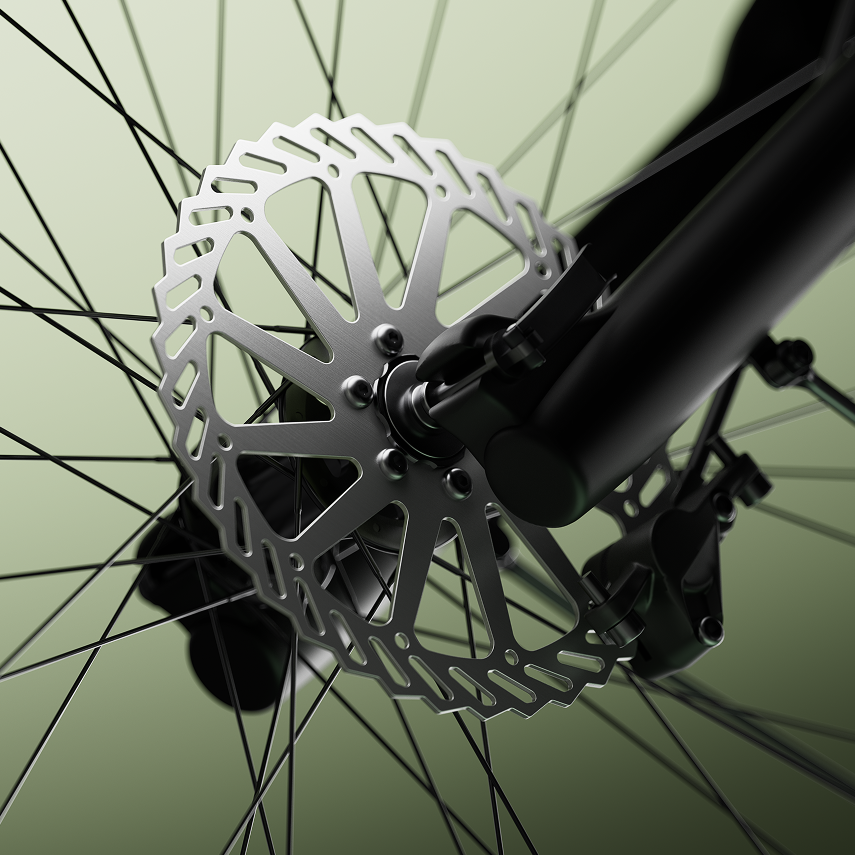

- Hydraulic Disc Brakes
EU brake setup by default. Adjust if preferred.
The front carrier will be shipped seperately in 2 working days.
Get 90 days of Laka insurance FREE with your e-bike! Place your e-bike order and the insurance activation email will follow. Offer valid until 31 August.
Learn more
- Regular price
- £1,999
- Regular price
-
- Sale price
- £1,999
- Unit price
- per

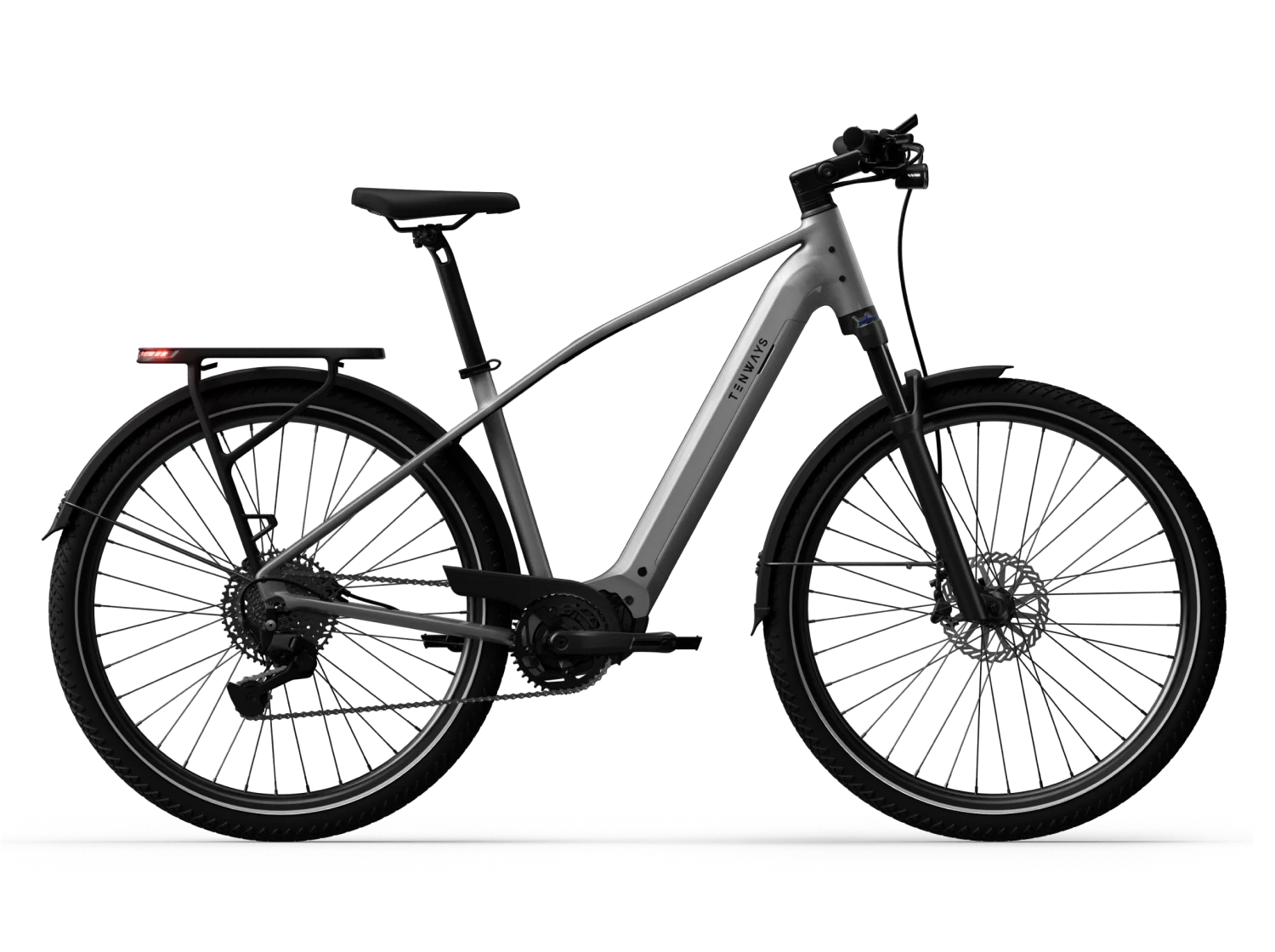

The Urban All-Rounder
Ride in 7 days
(excl. select colors/sizes)
200+ offline service centers across Europe
Responsive support that guarantees results
Spare parts supplied beyond the warranty period
Ride in 7 days
(excl. select colors/sizes)
200+ offline service centers across Europe
Responsive support that guarantees results
Spare parts supplied beyond the warranty period

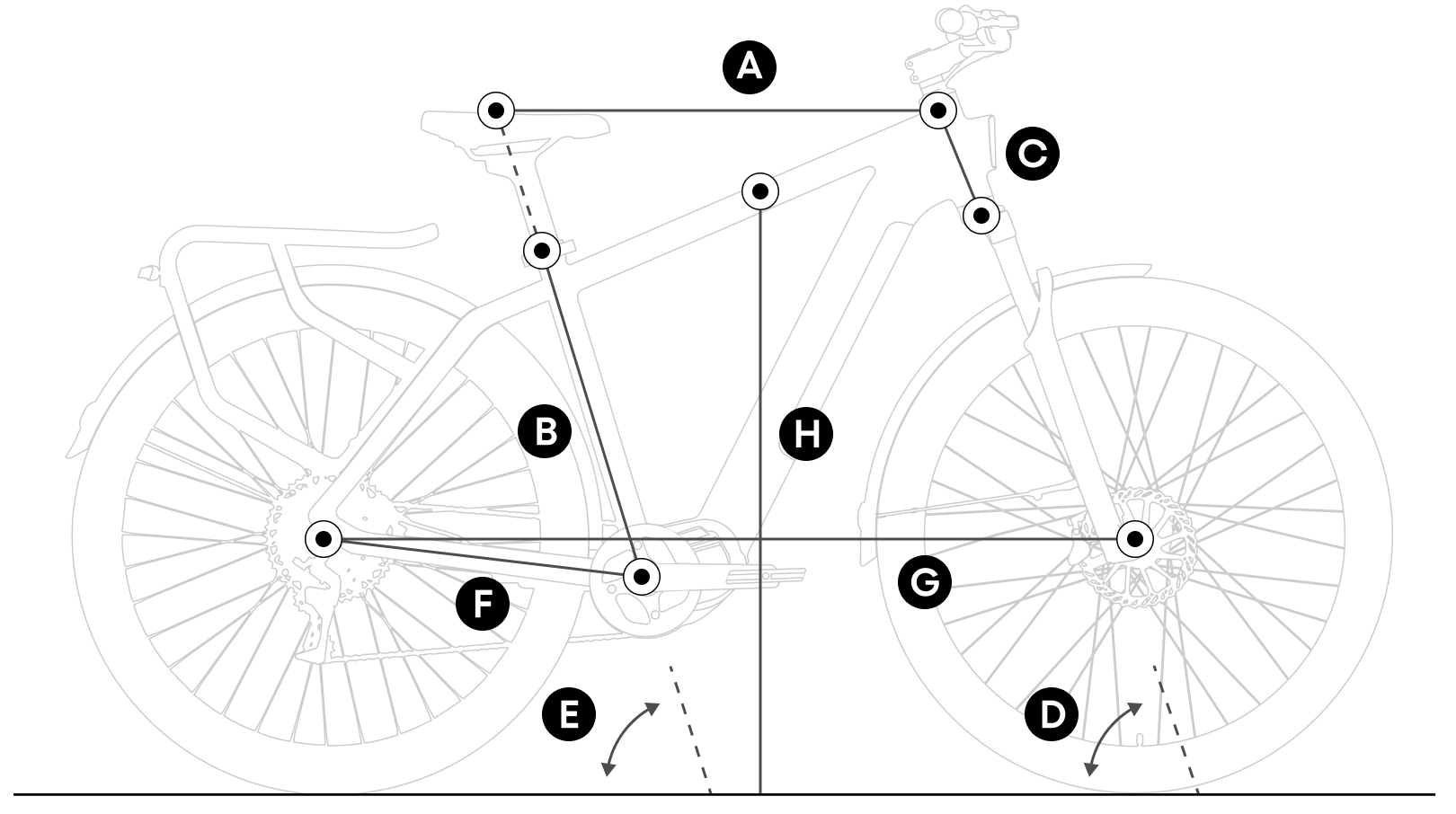

| SIZE (mm) | L Size |
|
A
Effective top tube
|
624.8 |
|
B
Seat tube length
|
470 |
|
C
Head tube
|
160 |
|
D
Steering angle
|
70 |
|
E
Seat tube angle
|
73 |
|
F
Chainstay
|
460 |
|
G
Wheelbase
|
1130.5 |
|
H
Standover
|
843.2 |

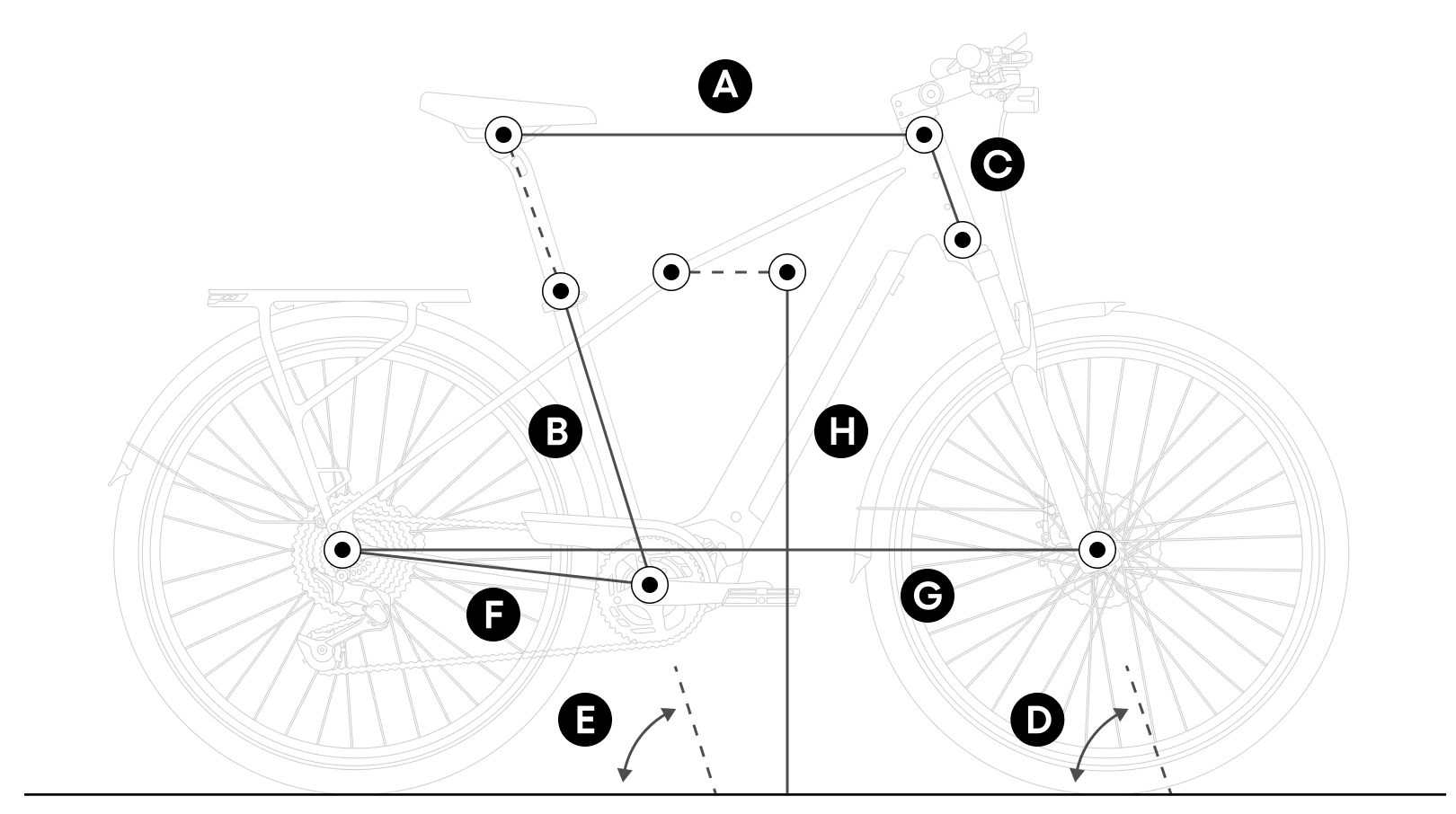

| SIZE (mm) | L Size |
|
A
Effective top tube
|
625 |
|
B
Seat tube length
|
500 |
|
C
Head tube
|
160 |
|
D
Steering angle
|
70 |
|
E
Seat tube angle
|
73 |
|
F
Chainstay
|
460 |
|
G
Wheelbase
|
1146.3 |
|
H
Standover
|
847 |
-
MotorSpecial Edition:

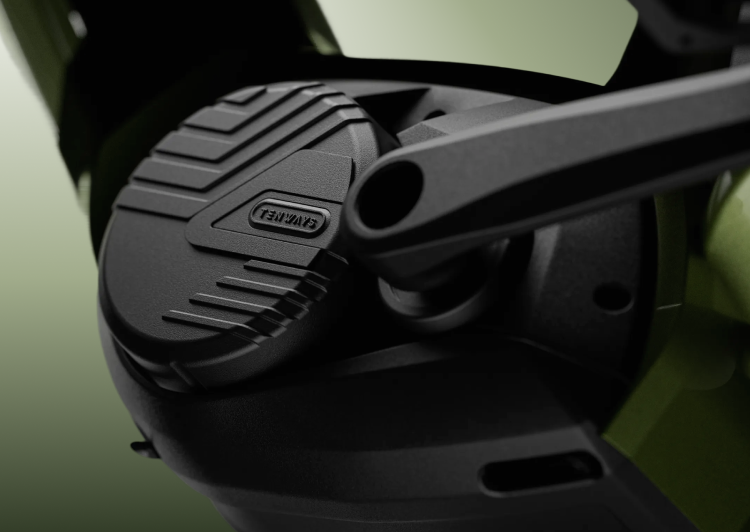

TENWAYS Mid-drive Motor (250 W Power, 80 Nm Torque)
Classic Edition:
Bafang M410 Mid-drive Motor (250W Power, 80 Nm Max. Torque) -
SensorIntegrated Torque Sensor of the Mid-drive Motor
-

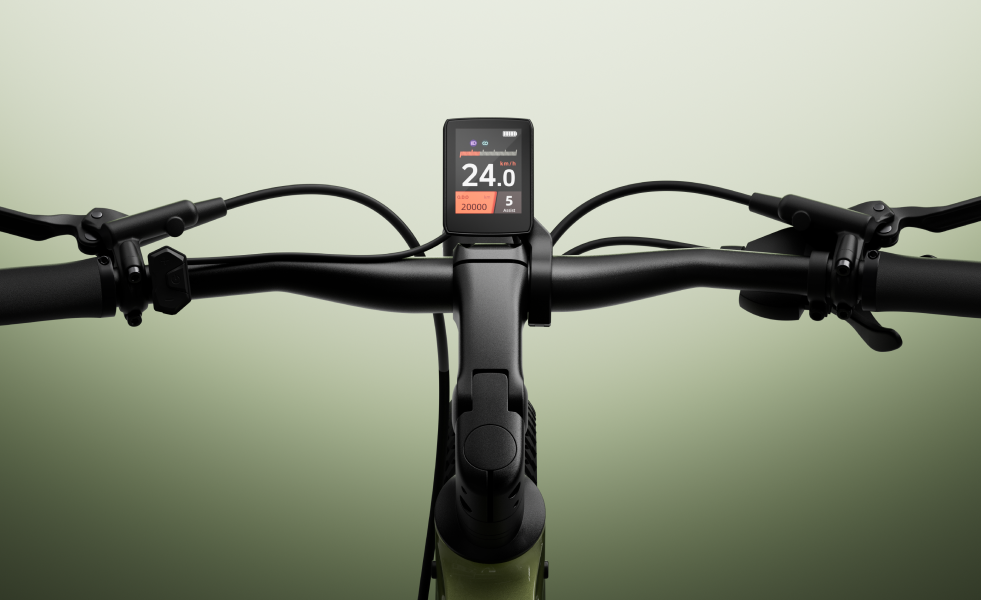

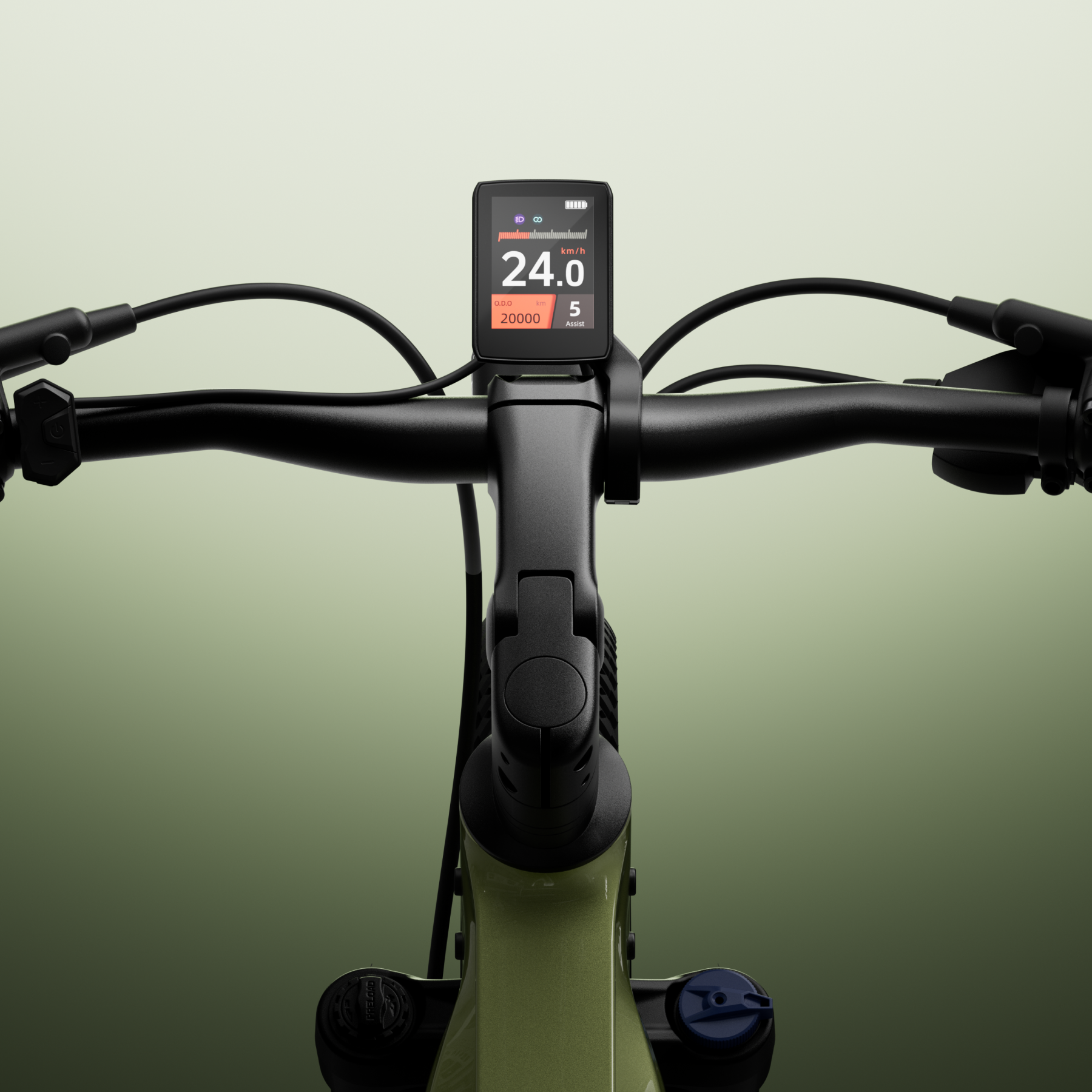

DisplayTFT LCD Color Display
-
BatterySpecial Edition:
560 Wh (36 V, 15.6 Ah) Lithium-ion Battery with LG Cells
Classic Edition:
504 Wh ( 36 V, 14 Ah ) Lithium-ion Battery with LG Cells -
ControllerIntegrated Controller of the Mid-drive Motor
-
LightsStVZO-compliant
-
Top Speed25 km/h
The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
-
RangeUp to 100 km
Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
-
Climbing AbilitySuitable for climbing slopes *
The actual performance would depend on the rider's physical strength.
-
Frame6061 Aluminium Frame
-
Front ForkSuspension Front Fork
-

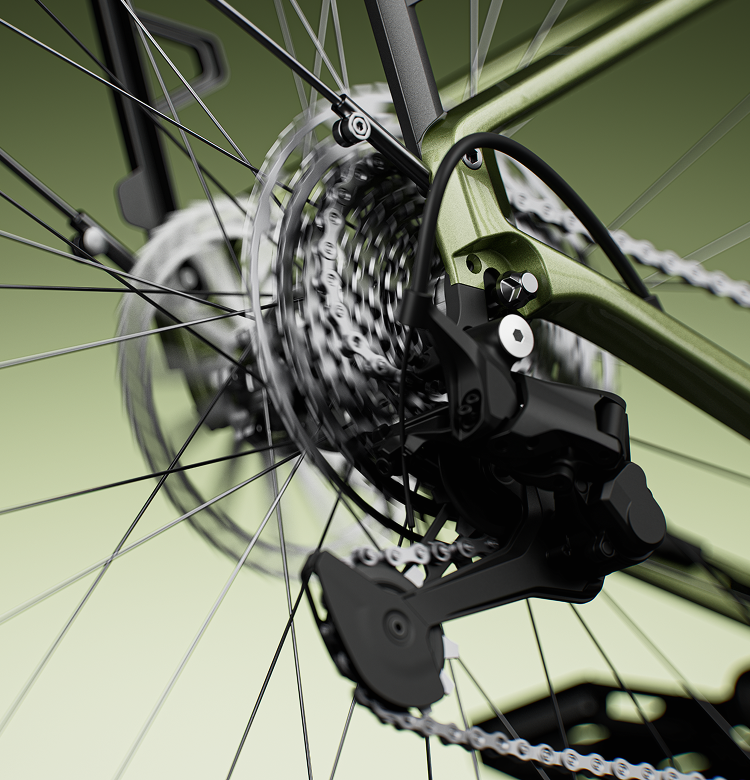

DrivetrainSpecial Edition:
SHIMANO CUES 10-speed Drivetrain
Classic Edition:
SHIMANO DEORE 10-speed Drivetrain -
ChainringShimano CUES 38 T
-
CassetteShimano CUES 11–48 T
-
TireCST Puncture-proof 29" Tires
-
BrakeHydraulic Disc Brakes
-
Wheels29'' Aluminium Rims
-
CranksetAluminium Alloy Crankset
-
Weight*Special Edition:
Net weight: 24.3 kg(excluding all accessories)
Full weight: 28.2 kg(including all accessories)
Permissible Max. Weight: 145 kg(including the bike's own weight)

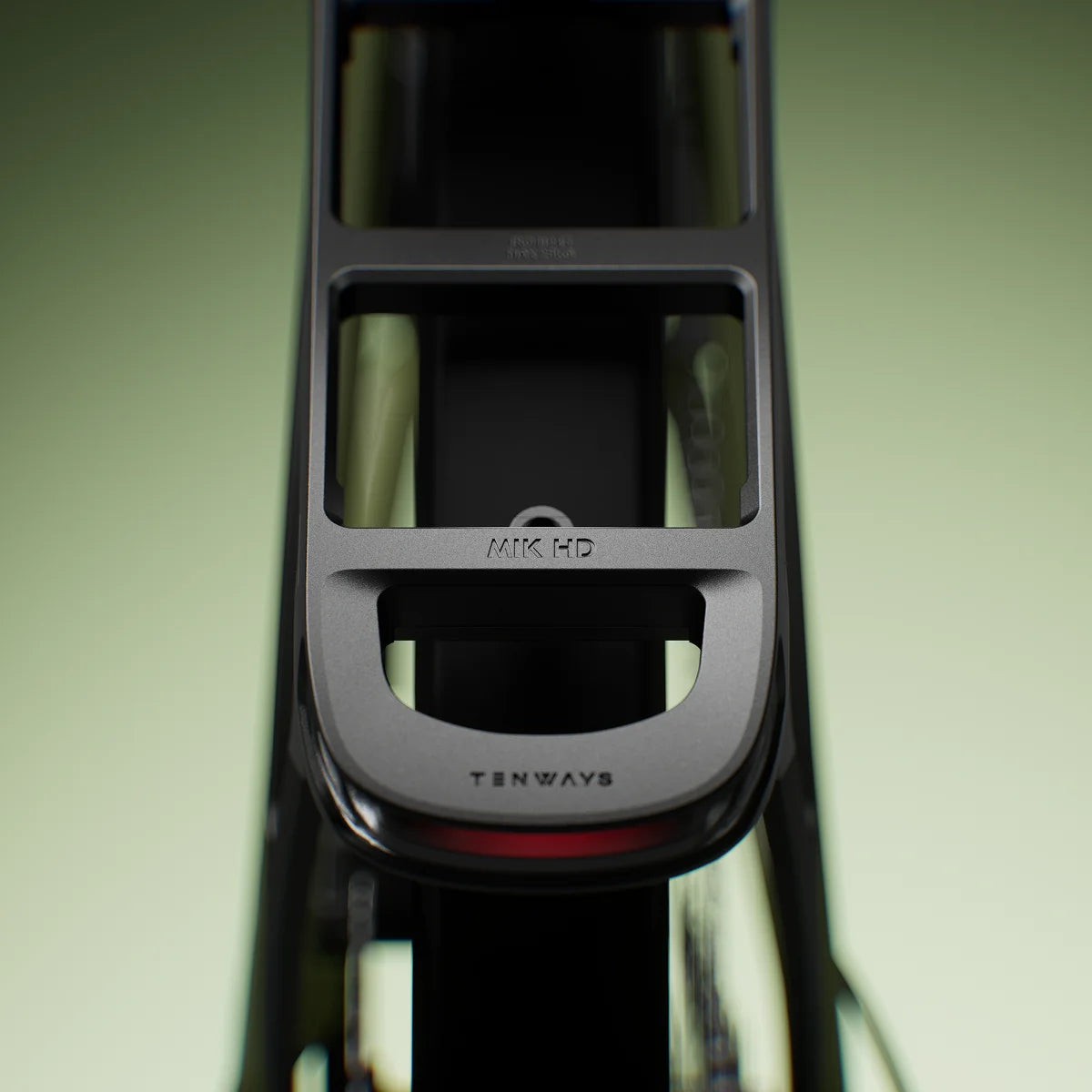

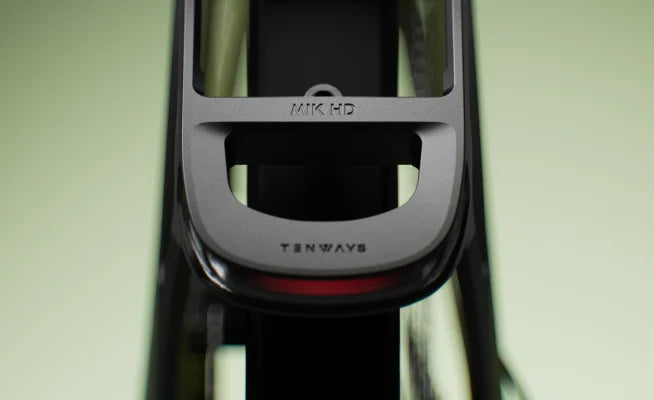

MIK HD Rear Carrier, Max. Load: 27 kg
Classic Edition:
Net weight: 27 kg(excluding all accessories)
Full weight: 29 kg(including all accessories)
Permissible Max. Weight: 150 kg(including the bike's own weight)
Rear Carrier Max. Load: 25 kgAll stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
PERFORMANCE

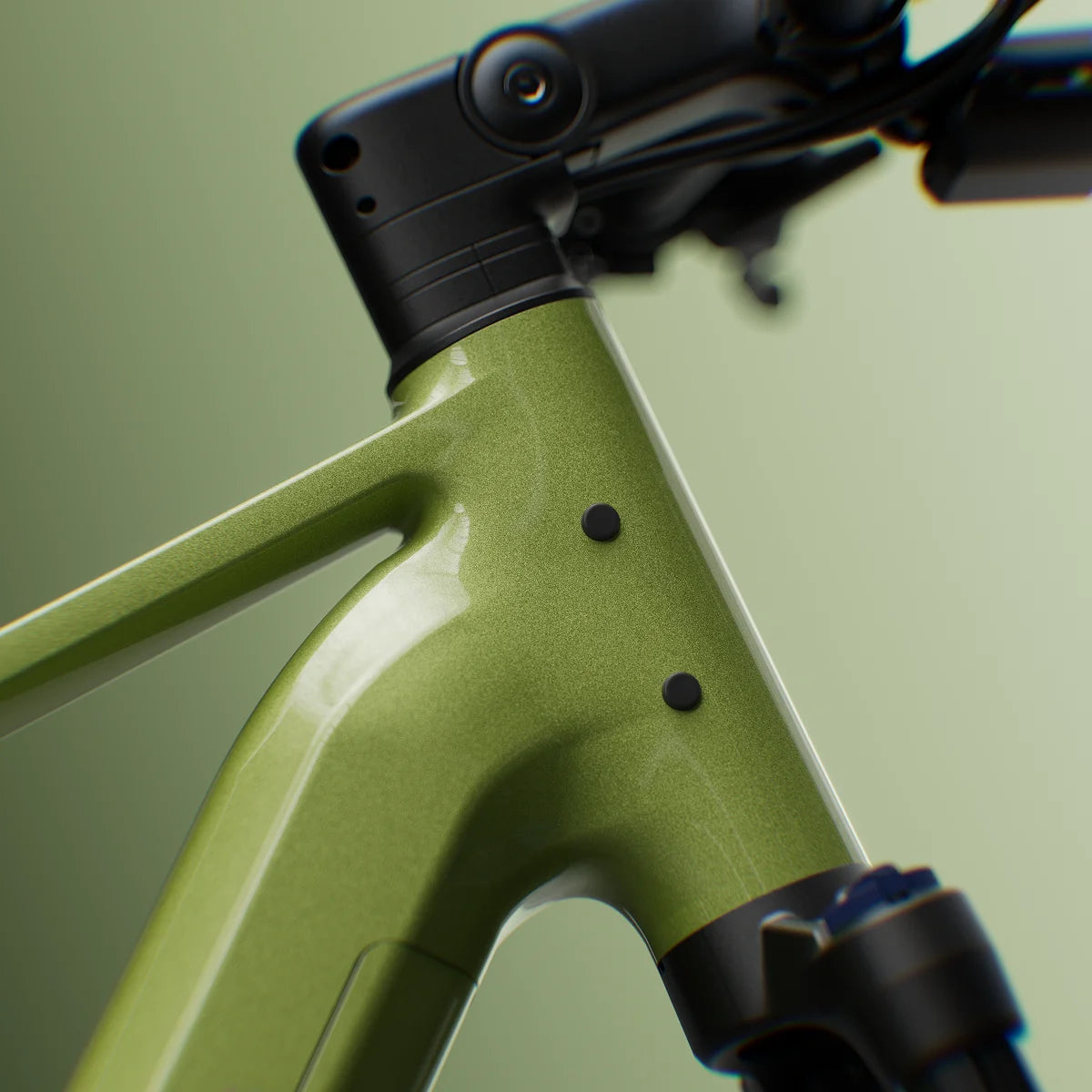

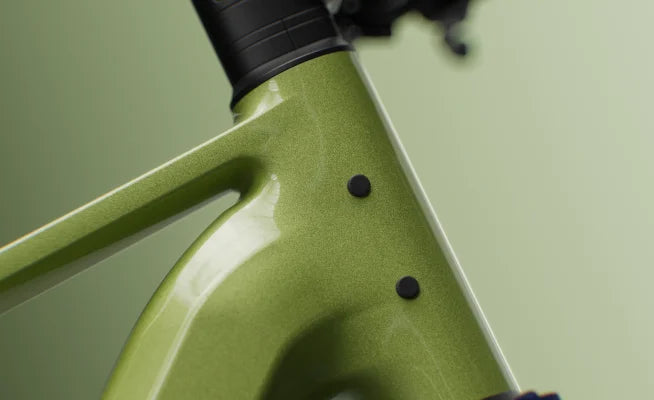

MIK System
MIK System
the frame
the stem
handlebars
THE ALL-NEW TENWAYS STYLE
up to 100 km range
up to 100 km range

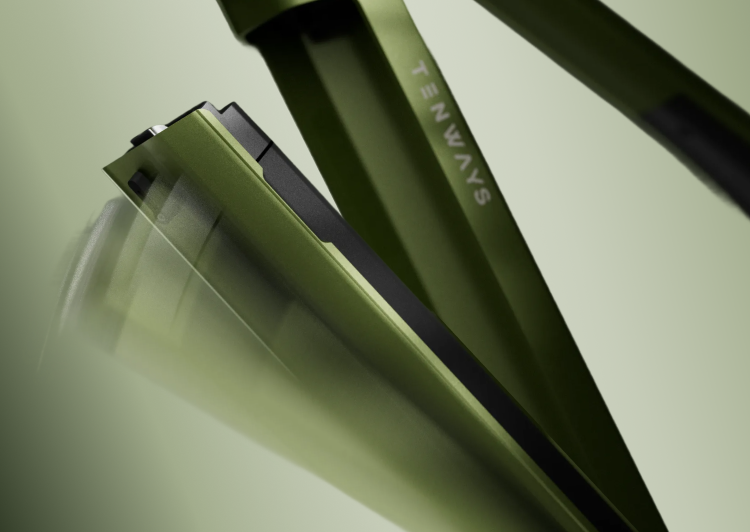

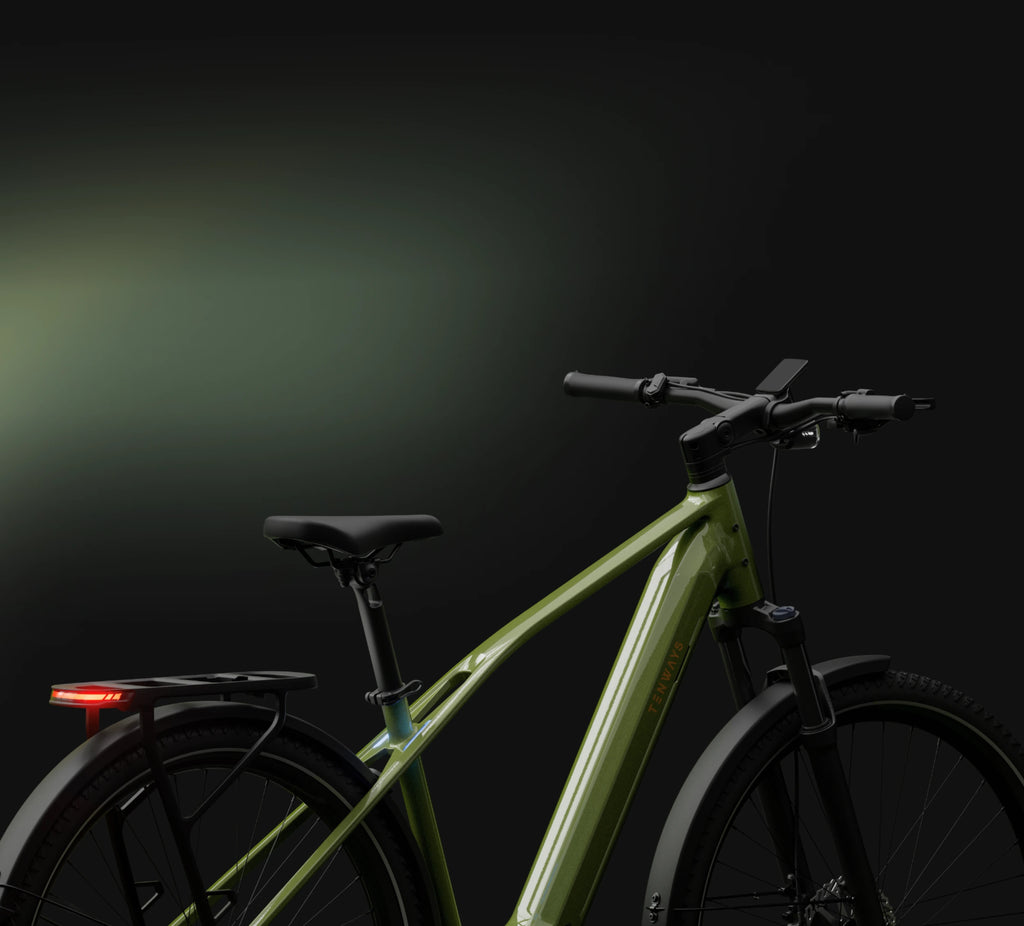

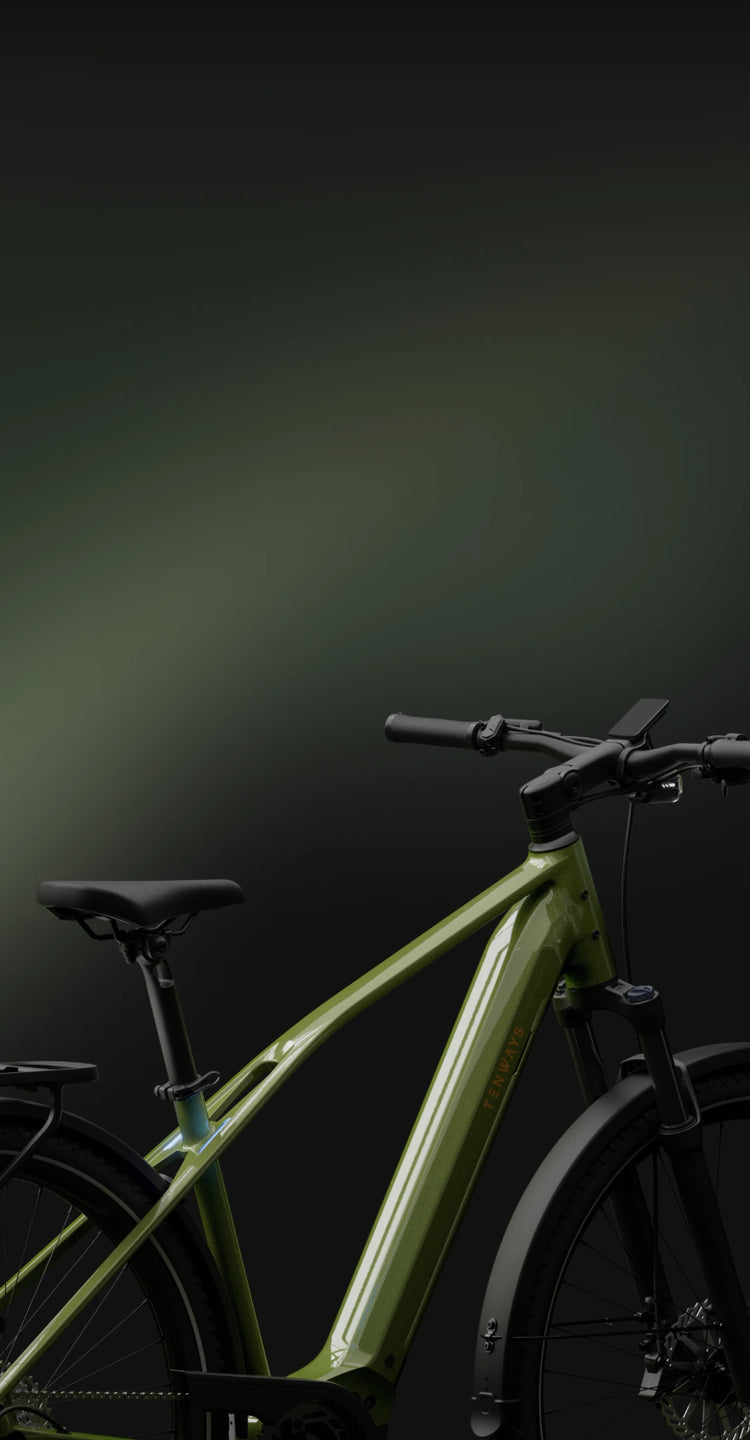

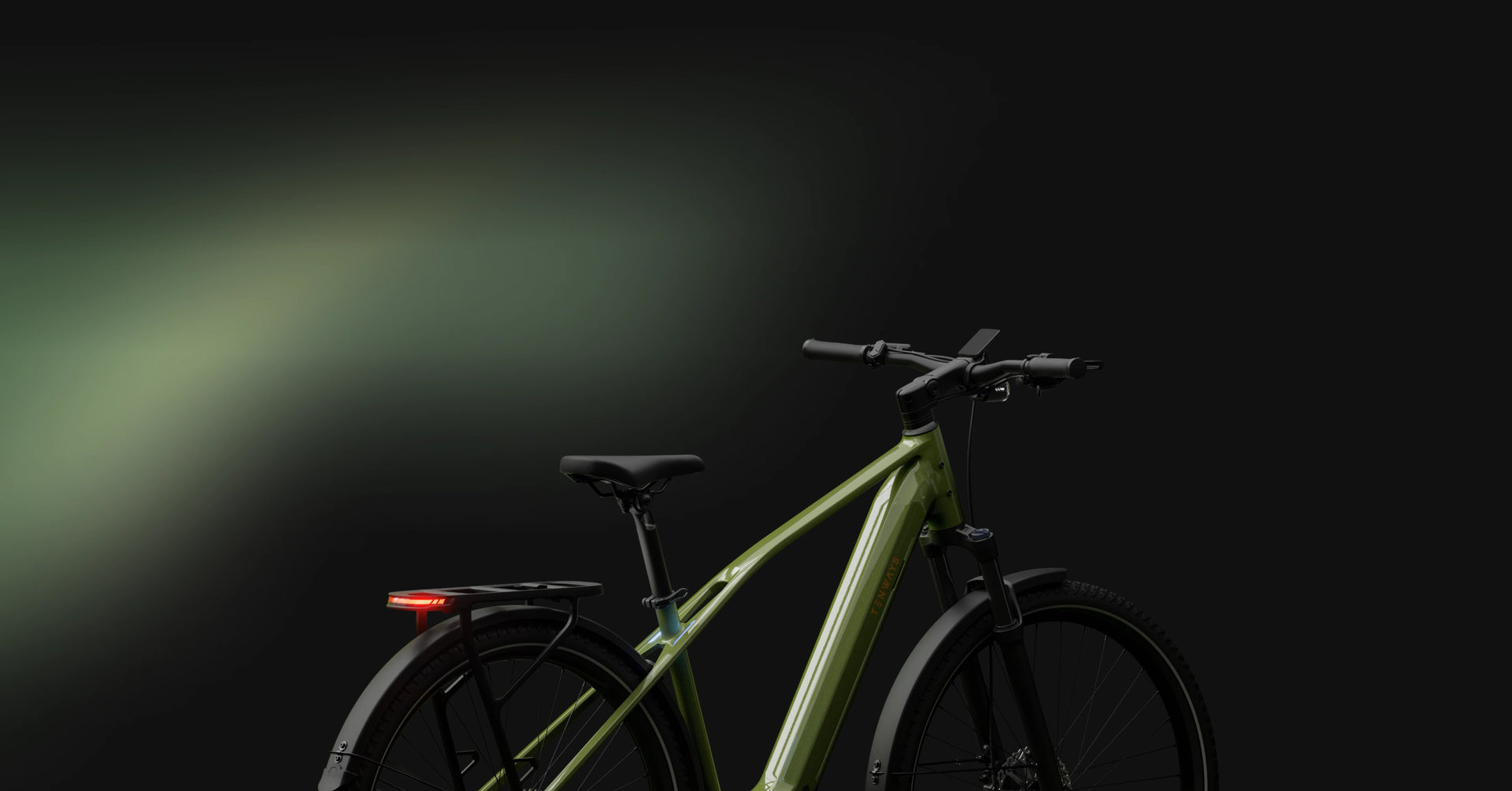

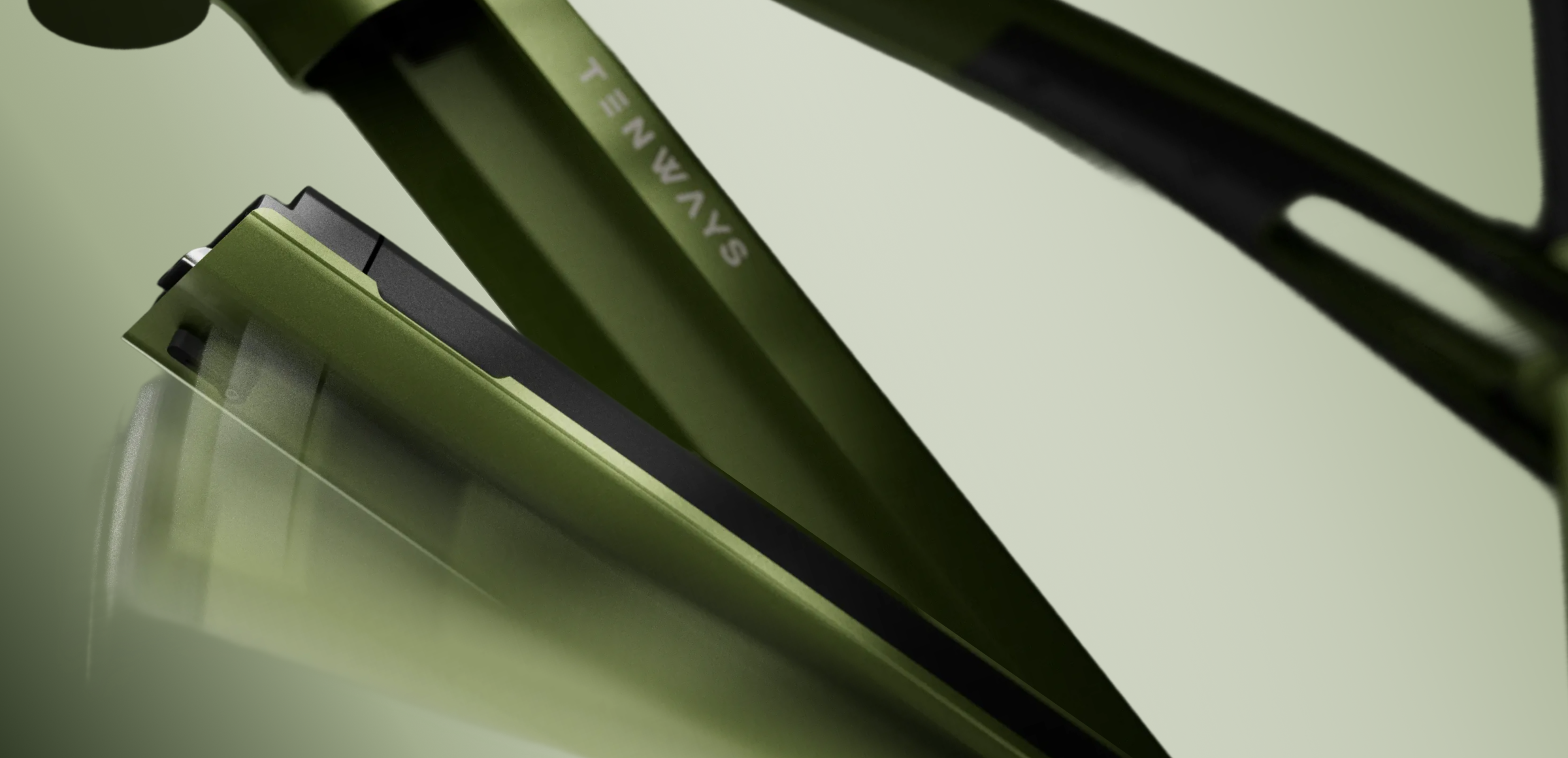

A Frame Redefined
From Daily Errands
From
Daily Errands
To Cross-Country
Adventures
Experience the future of cycling
with the TENWAYS App
Your Everyday Hero
Unlock
the Joy of Cycling
Conquering Streets
and Beyond
ELECTRONICS
ELECTRONICS
-

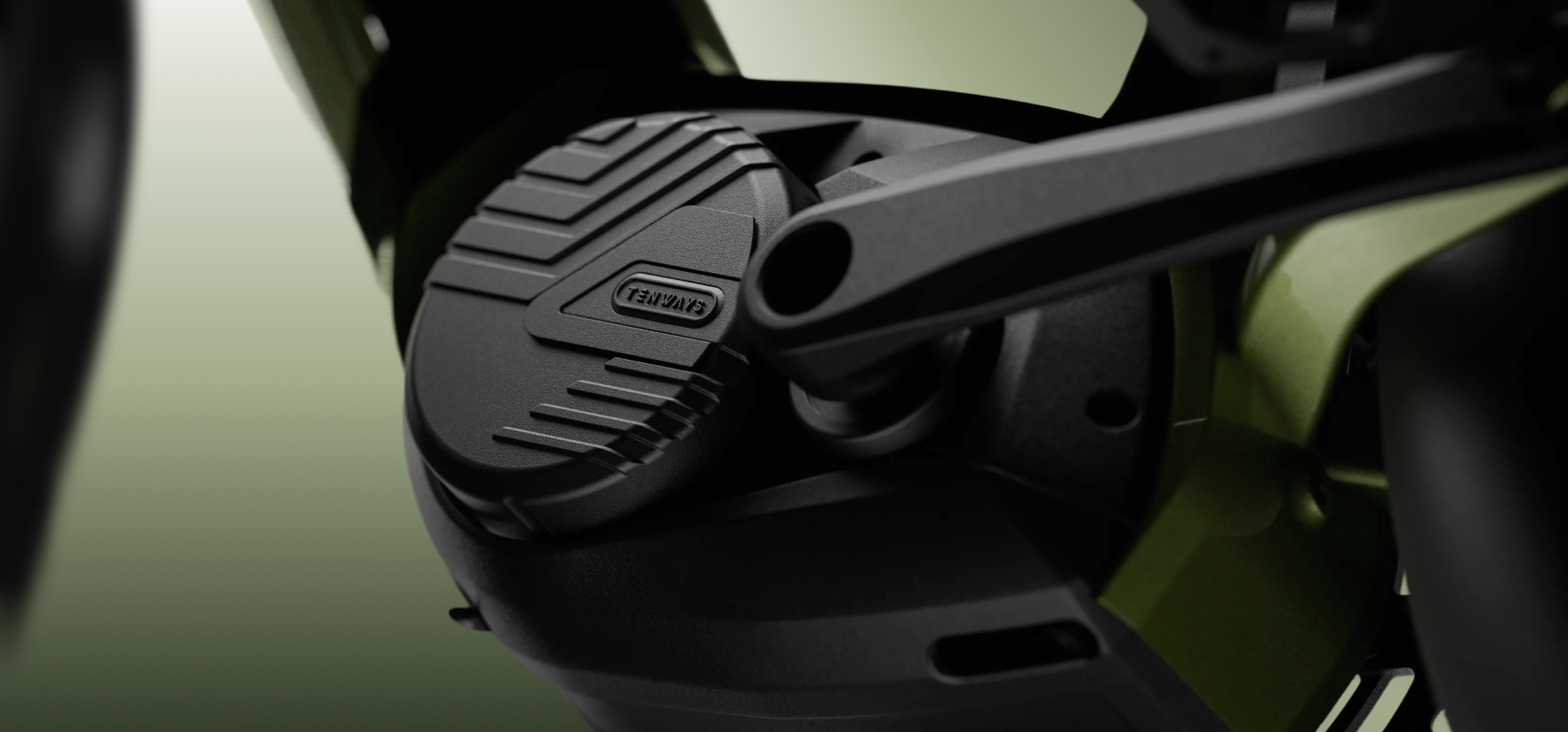

Motor
Special Edition:
TENWAYS Mid-drive Motor (250 W Power, 80 Nm Max. Torque)
Classic Edition:
Bafang M410 Mid-drive Motor (250W Power, 80 Nm Max. Torque)
-
Sensor
Integrated Torque Sensor of the Mid-drive Motor
-
Display
TFT LCD Color Display
-
Battery
Special Edition:
560 Wh (36 V, 15.6 Ah) Lithium-ion Battery with LG Cells
Classic Edition:
504 Wh ( 36 V, 14 Ah ) Lithium-ion Battery with LG Cells
-
Controller
Integrated Controller of the Mid-drive Motor
-
Lights
StVZO-compliant
PERFORMANCE
PERFORMANCE
-
Top Speed
25 km/h*
The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations. -
Range
Up to 100 km
Actual performance will vary depending on temperature, road conditions, rider's weight, etc. -
Climbing Ability*
Suitable for Climbing Slopes
The actual performance would depend on the rider's physical strength.
COMPONENTS
COMPONENTS
-
Frame
6061 Aluminium Frame
-
Crankset
Aluminium Alloy Crankset
-
Wheels
29'' Aluminium Rims
-
Front Fork
Suspension Front Fork
-
Tire
CST Puncture-proof 29" Tires
-
Brake
Hydraulic Disc Brakes
-
Drivetrain
Special Edition:
SHIMANO CUES 10-speed Drivetrain
Classic Edition:
SHIMANO DEORE 10-speed Drivetrain
-
Chainring
Shimano CUES 38 T
-
Cassette
Shimano CUES 11–48 T
-

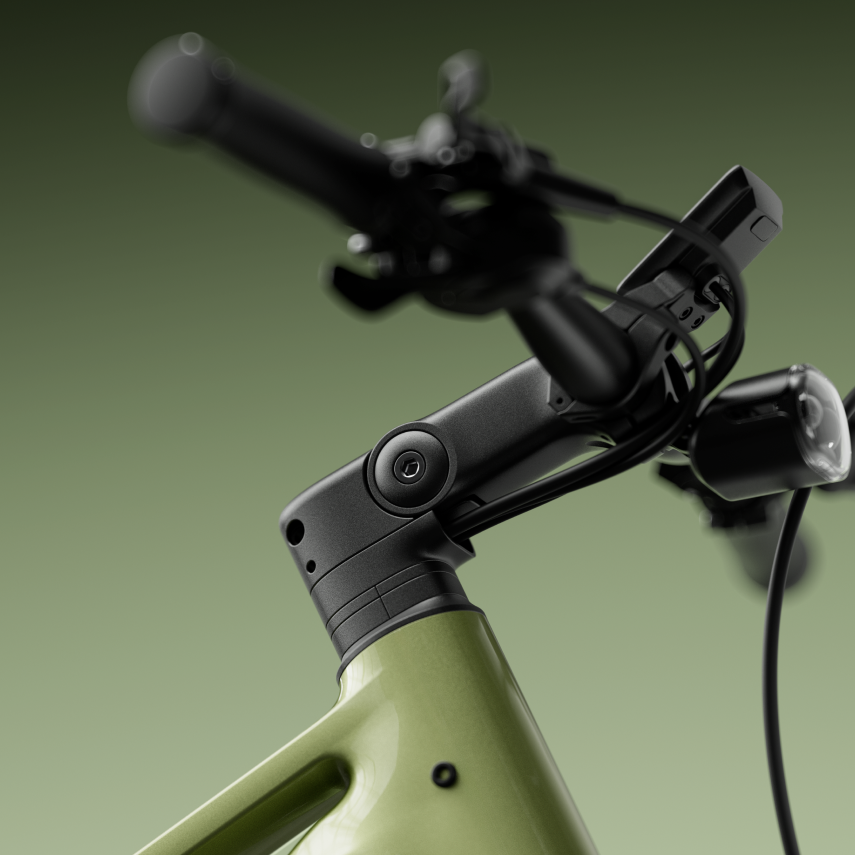

Stem
Special Edition: Adjustable
Classic Edition: Rigid
-
Weight
Special Edition:
Net weight: 24.3 kg (excluding all accessories)
Full weight: 28.2 kg (including all accessories)
Permissible Max. Weight: 145 kg (including the bike's own weight)
MIK HD Rear Carrier, Max. Load: 27 kg
Classic Edition:Net weight: 27 kg (excluding all accessories)
Full weight: 29 kg (including all accessories)
Permissible Max. Weight: 150 kg
(including the bike's own weight)Rear Carrier Max. Load: 25 kg
All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
